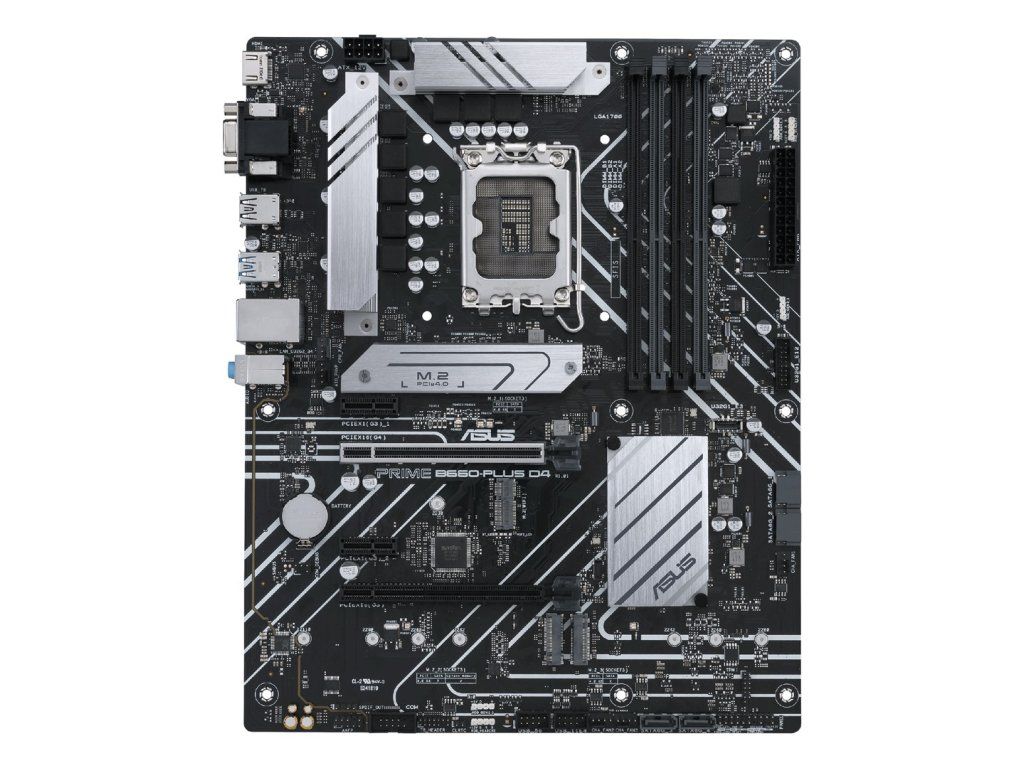

ASUS PRIME B660-PLUS D4 Intel B660 LGA 1700 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.175 kg |
| EAN: | 4711081523017 |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron® |
| Processor manufacturer: | Intel |
| Supported processor sockets: | LGA 1700 |
| Processor socket: | LGA 1700 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family: | Intel |
| Audio output channels: | 7.1 channels |
| Power source type: | ATX |
| Motherboard chipset: | Intel B660 |
| Motherboard form factor: | ATX |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Supported memory types: | DDR4-SDRAM |
| Supported memory clock speeds: | 2400, 2800, 5066, 2666, 4266 MHz, 3333, 3466, 3000, 4000, 4800 MHz, 3733, 4400 MHz, 5000, 4600, 3400, 3866, 2133 MHz, 2933, 3600 |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| ECC сompatibility: | Non-ECC |
| Width: | 305 mm |
| Height: | 53 mm |
| Depth: | 244 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| TPM connector: | Yes |
| Chassis intrusion connector: | Yes |
| EPS power connector (8-pin): | Yes |
| RGB LED pin header: | Yes |
| Number of COM connectors: | 1 |
| Front panel connector: | Yes |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of chassis fan connectors: | 3 |
| Thunderbolt headers: | 1 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| S/PDIF out connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Number of storage drives supported: | 7 |
| Number of HDDs supported: | 4 |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 10, 1, 0, 5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| HDMI version: | 2.1 |
| VGA (D-Sub) ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Headphone outputs: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| DisplayPorts quantity: | 1 |
| USB connector type: | USB Type-A, USB Type-C |
| DisplayPort version: | 1.4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 3 |
| Weight: | 891 g |
| Harmonized System (HS) code: | 84733020 |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
