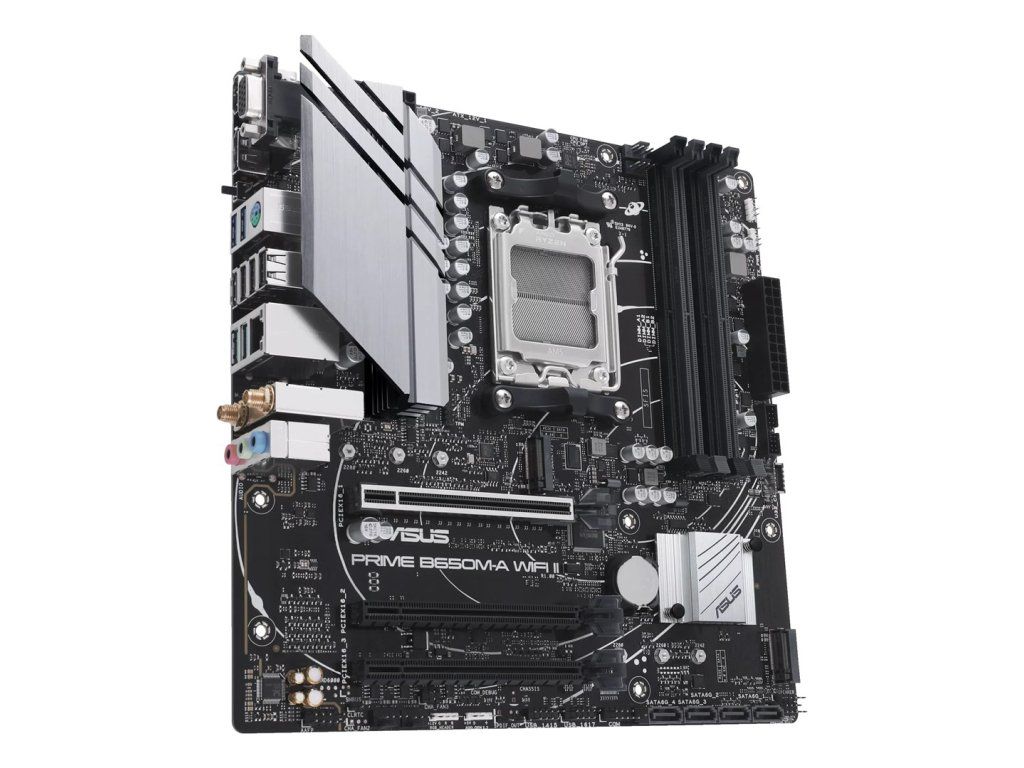

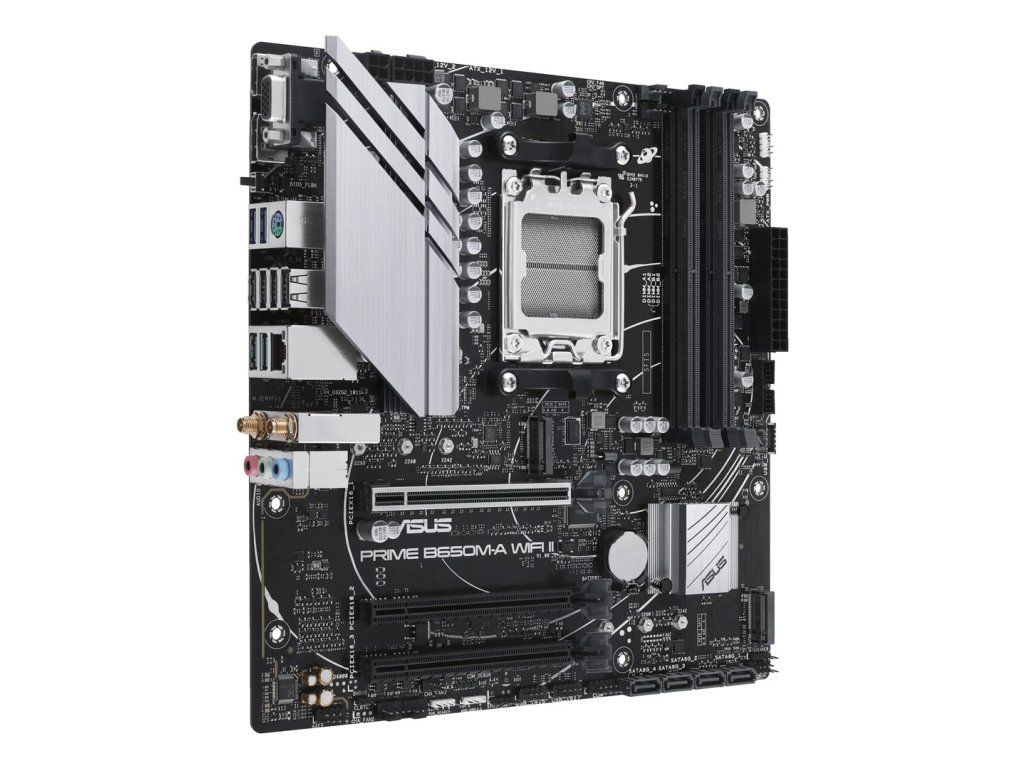

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.5 kg |
| EAN: | 4711387034934 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen™ 7 |
| Processor socket: | Socket AM5 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Windows operating systems supported: | Windows 10, Windows 11 |
| Power source type: | ATX |
| Motherboard chipset: | AMD B650 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| ECC сompatibility: | ECC & Non-ECC |
| Unbuffered memory: | Yes |
| Supported memory clock speeds: | 6000, 5600, 5200, 6200, 4800 MHz, 5000, 6400, 5800, 5400 |
| Maximum internal memory: | 128 GB |
| Depth: | 244 mm |
| Width: | 244 mm |
| Wi-Fi standards: | 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b, 802.11a, Wi-Fi 6 (802.11ax) |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.2 |
| Ethernet LAN: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Bluetooth: | Yes |
| RGB LED pin header: | Yes |
| Total number of SATA connectors: | 4 |
| 12V power connector: | Yes |
| Audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of chassis fan connectors: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA connectors: | 4 |
| Number of COM connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Peripheral (Molex) power connectors (4-pin): | 4 |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| S/PDIF out connector: | Yes |
| Power fan connector: | Yes |
| Front panel connector: | Yes |
| USB 2.0 connectors: | 2 |
| Clear CMOS button: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Bundled software: | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Number of storage drives supported: | 2 |
| Number of HDDs supported: | 4 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| RAID levels: | 10, 1, 0 |
| Supported storage drive types: | HDD & SSD |
| Line-in: | Yes |
| VGA (D-Sub) ports quantity: | 1 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| USB 2.0 ports quantity: | 4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB connector type: | USB Type-A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 3 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
