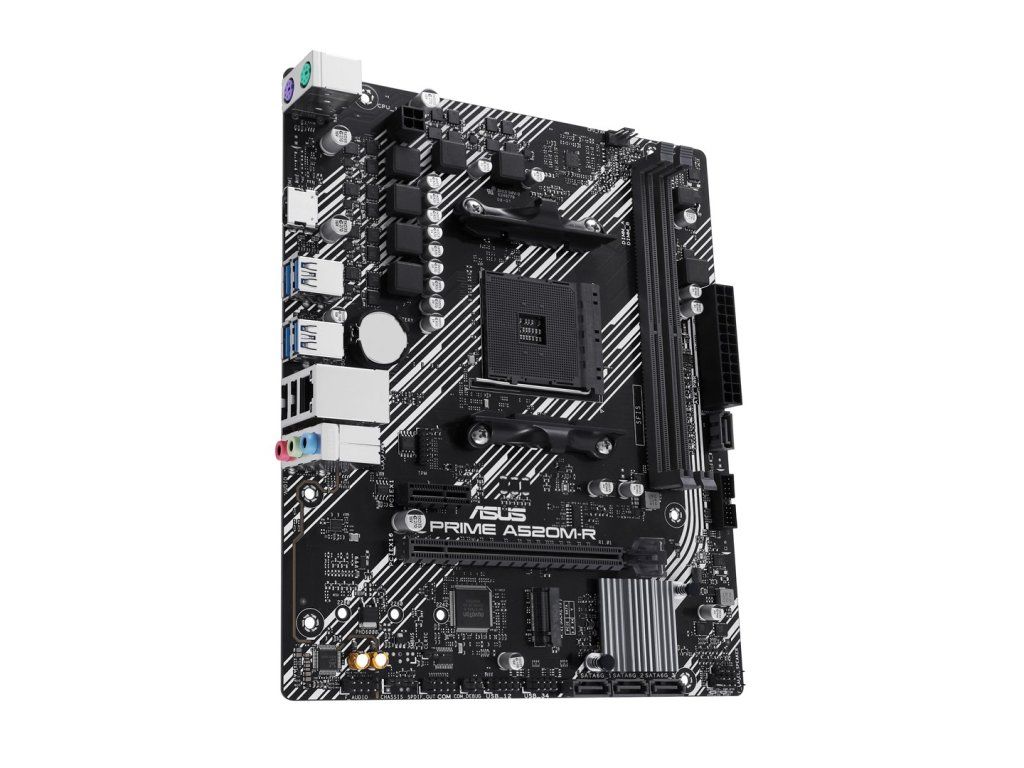

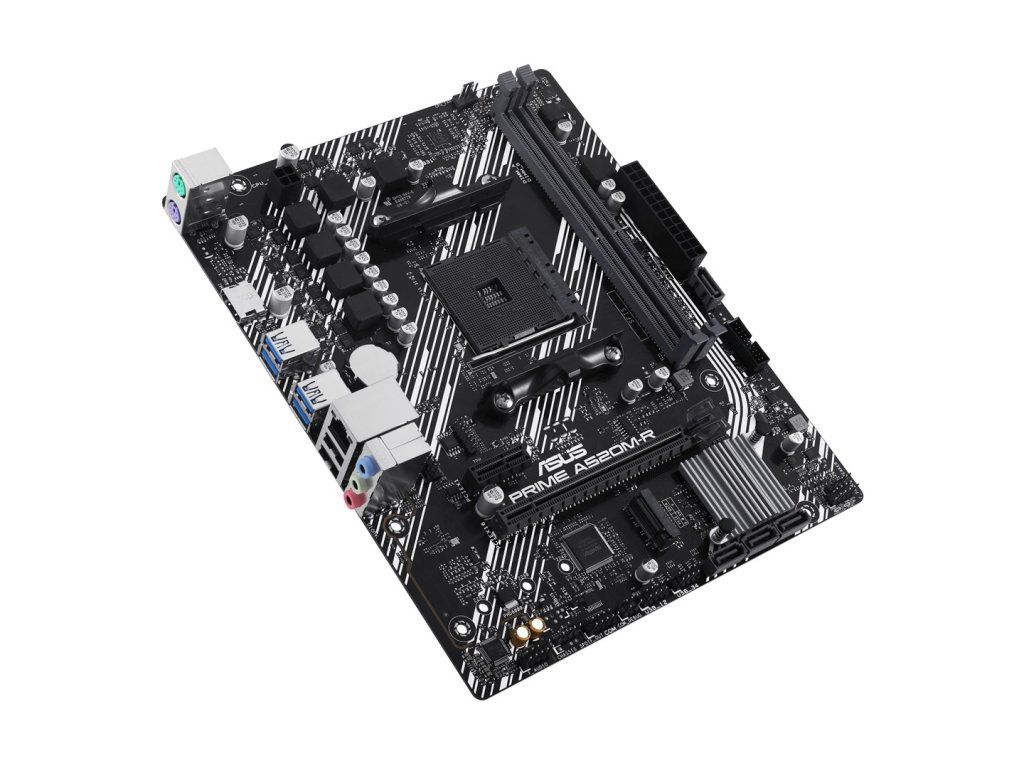

ASUS PRIME A520M-R AMD A520 Socket AM4 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 0.78 kg |
| EAN: | 4711387466414 |
| Processor socket: | Socket AM4 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, AMD Ryzen™ 3 |
| Supported processor sockets: | Socket AM4 |
| Parallel processing technology support: | Not supported |
| Power source type: | ATX |
| Cooling type: | Passive |
| Motherboard chipset: | AMD A520 |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Product colour: | Black |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | AMD |
| Number of memory slots: | 2 |
| Supported memory clock speeds: | 2133, 3733, 4133, 4000, 3000, 2933, 3600, 3200, 2666, 3333, 3400, 3866, 2400, 2800, 3466, 4200, 4400, 4666, 4466, 4266, 5100 MHz, 4866, 4333, 4600 MHz |
| Unbuffered memory: | Yes |
| Supported memory clock speed (max): | 5100 MHz |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR4-SDRAM |
| Maximum internal memory: | 64 GB |
| Depth: | 193 mm |
| Width: | 236 mm |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| 12V power connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of chassis fan connectors: | 1 |
| Number of COM connectors: | 1 |
| TPM connector: | Yes |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| CPU fan connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| BIOS type: | UEFI AMI |
| Package width: | 270 mm |
| Package height: | 51.5 mm |
| Package depth: | 263 mm |
| Package weight: | 880 g |
| Cables included: | SATA |
| Number of storage drives supported: | 5 |
| RAID support: | Yes |
| Number of HDDs supported: | 4 |
| RAID levels: | 0, 1, 10 |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Microphone in: | Yes |
| Line-in: | Yes |
| PS/2 ports quantity: | 2 |
| HDMI version: | 2.1 |
| HDMI ports quantity: | 1 |
| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| USB 2.0 ports quantity: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| Warnings: | Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture., Dispose of according to local electro-waste regulations. |
