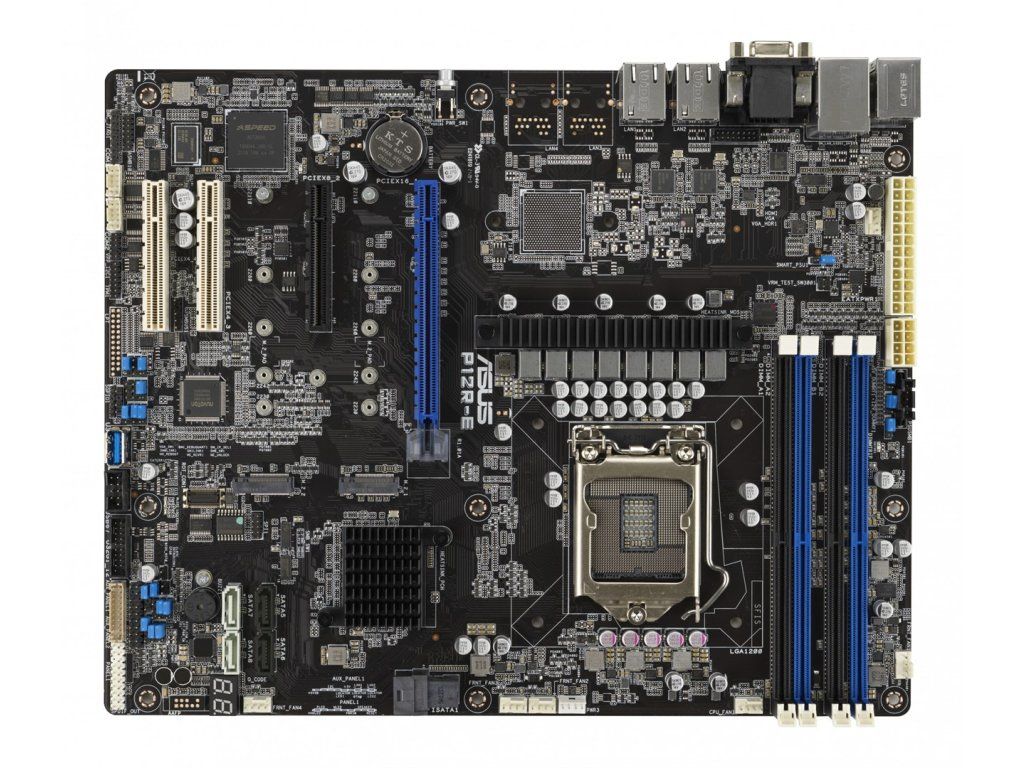

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX server motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | INTEL server motherboards |
|---|---|
| Greutate: | 1.51 kg |
| EAN: | 4711081420217 |
| Compatible processor series: | Intel® Pentium®, Intel Xeon E |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| On-board graphics card memory: | 64 MB |
| On-board graphics card: | Yes |
| On-board graphics card model: | Aspeed AST2600 |
| Graphics card family: | ASPEED |
| Motherboard chipset: | Intel C256 |
| PC health monitoring: | CPU, Fan |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Component for: | Server |
| Supported memory clock speeds: | 2933, 3200 MHz, 2666 |
| Maximum internal memory: | 128 GB |
| Supported memory module capacities: | 16GB, 8GB, 32GB |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 3200 MHz |
| Operating temperature (T-T): | 10 - 50 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Storage relative humidity (H-H): | 20 - 90% |
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 68 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| USB 2.0 connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 8 |
| Power fan connector: | Yes |
| Chassis intrusion connector: | Yes |
| Number of COM connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| TPM connector: | Yes |
| Package width: | 341 mm |
| Package depth: | 281 mm |
| Package weight: | 1.5 kg |
| Package height: | 78 mm |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| Number of HDDs supported: | 8 |
| Number of storage drives supported: | 10 |
| Ethernet LAN (RJ-45) ports: | 2 |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x8 (Gen 3.x) slots: | 2 |
| PCI Express x8 (Gen 4.x) slots: | 1 |
| Weight: | 800 g |
| Harmonized System (HS) code: | 84733020 |
| Warnings: | The product contains electrical components - take care during installation to avoid injury., Adjust adequate ventilation to avoid overheating and potential damage., Avoid contact with liquids and moisture to prevent damage to equipment. |
