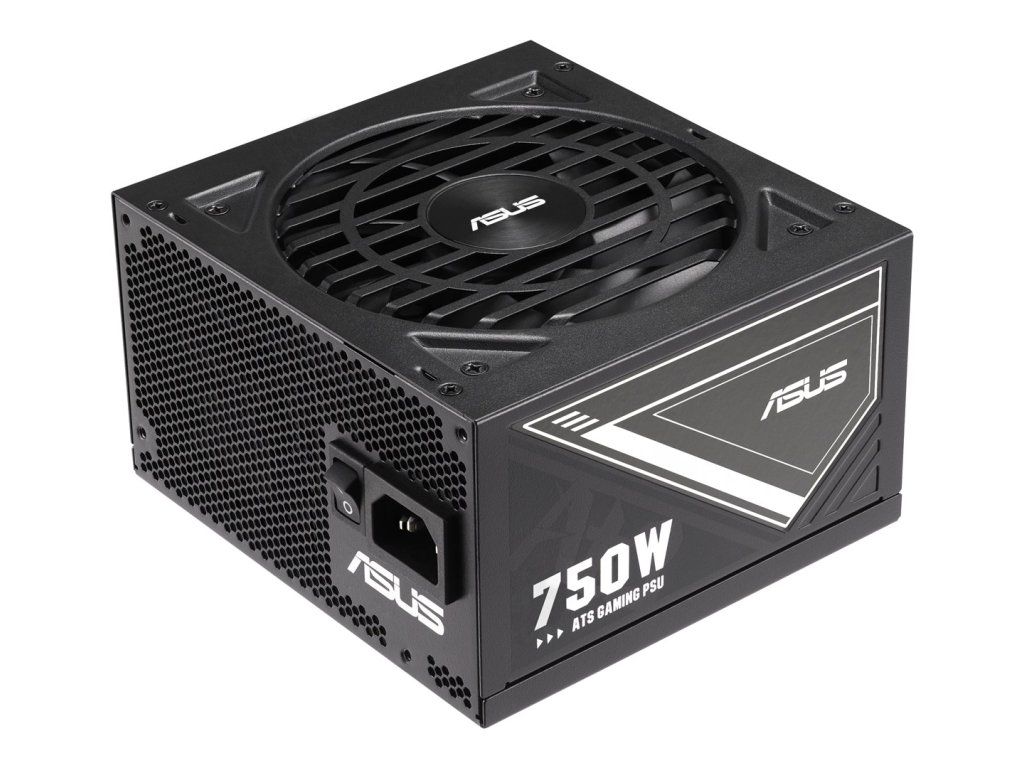

ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 2.945 kg |
| EAN: | 4711387870020 |
| Product colour: | Black |
| Cooling type: | Active |
| On/off switch: | Yes |
| Number of fans: | 1 fan(s) |
| Combined power (-12V): | 3.6 W |
| Combined power (+3.3V): | 100 W |
| Power protection features: | Short circuit, Overheating, Over power, Over voltage, Under voltage, Over current |
| Max output current (+3.3V): | 20 A |
| AC input voltage: | 110 - 240 V |
| Combined power (+5Vsb): | 15 W |
| Max output current (+5V): | 20 A |
| Total power: | 750 W |
| Max output current (-12V): | 0.3 A |
| Power Factor Correction (PFC) type: | Active |
| Max output current (+5Vsb): | 3 A |
| Combined power (+5V): | 100 W |
| Efficiency: | 92% |
| Weight: | 1.53 kg |
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 86 mm |
| 80 PLUS certification: | 80 PLUS Gold |
| Power supply unit (PSU) form factor: | ATX |
| Mean time between failures (MTBF): | 120000 h |
| Purpose: | PC |
| Bearing technology: | Ball bearing |
| Package depth: | 180 mm |
| Package width: | 250 mm |
| Package type: | Box |
| Package height: | 115 mm |
| Package weight: | 2.78 kg |
| Cables included: | AC, PCIe, SATA |
| Packaging content: | Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-2 Cable x 1 (675+100mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 3 (400+120+120mm) Chassis Screws Package x 1 Quick Start Guide x 1 |
| Compliance certificates: | RoHS |
| ATX power connector (20+4 pin): | Yes |
| Peripheral (Molex) power connectors (4-pin): | 3 |
| PCI Express power connectors (6+2 pin): | 2 |
| Number of SATA power connectors: | 3 |
| Motherboard power connector: | 20+4 pin ATX |
| Motherboard power cable length: | 55 cm |
| Cabling type: | Fully-Modular |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 65 cm |
| PCI Express power cable length: | 67.5 cm |
