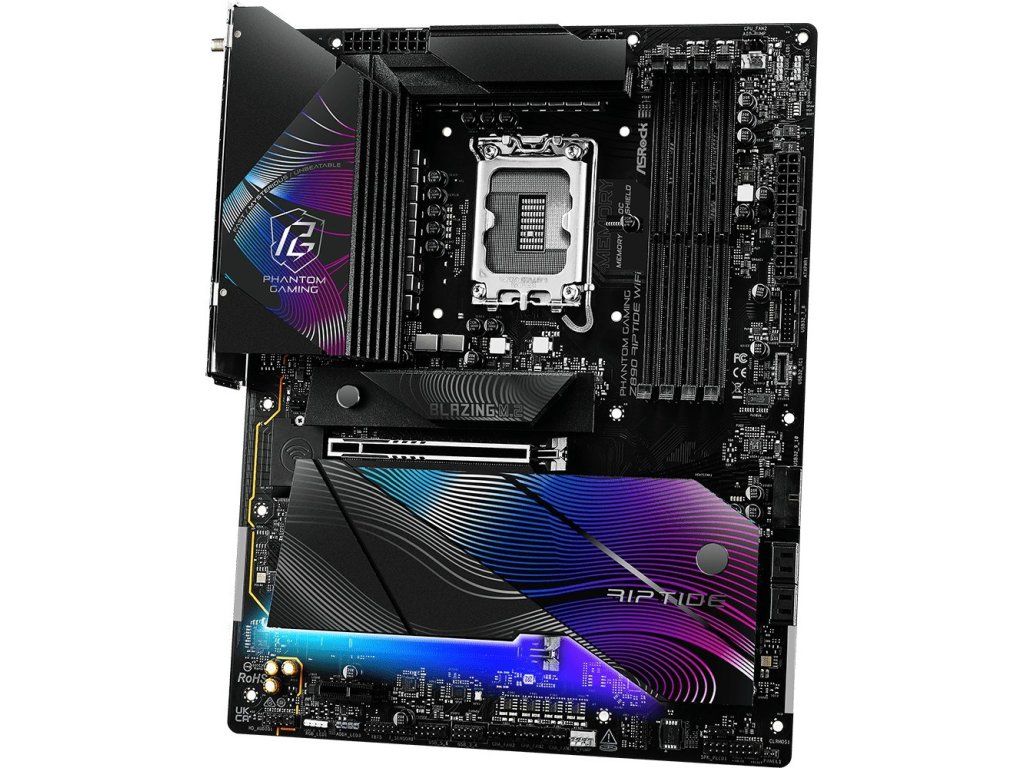

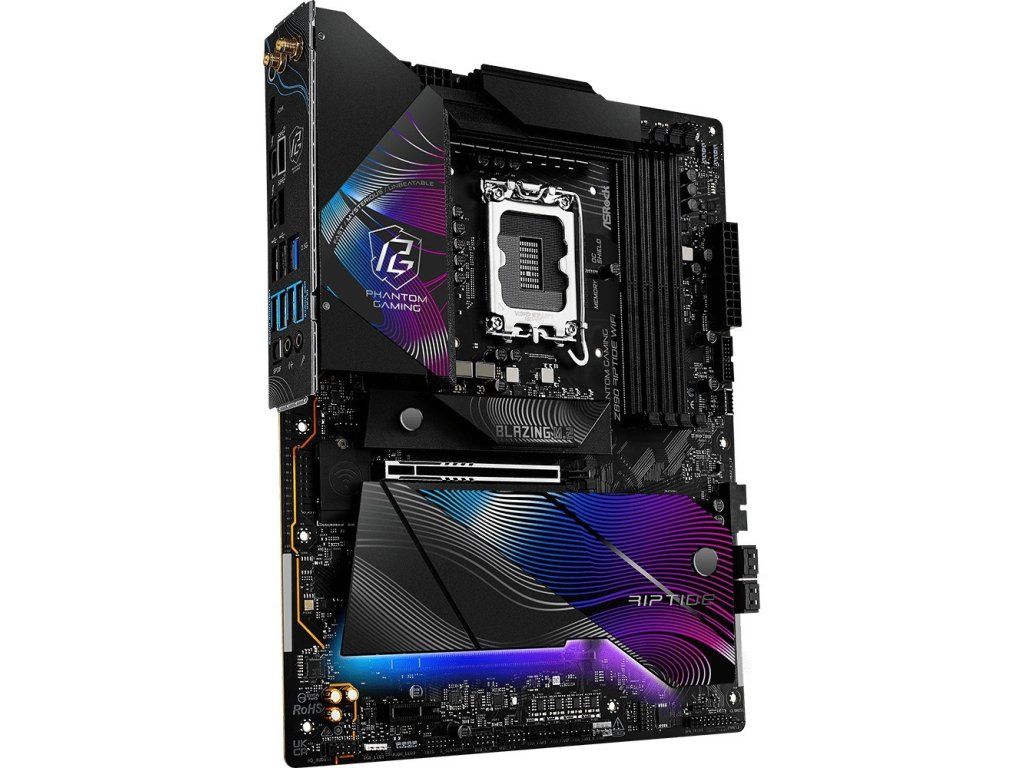

ASRock Z890 Riptide WiFi Motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1851 |
|---|---|
| Greutate: | 1.9 kg |
| EAN: | 4710483949647 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA1851 |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Motherboard chipset: | Intel Z890 |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | ATX |
| Memory channels: | Dual-channel |
| Intel Extreme Memory Profile (XMP) version: | 3.0 |
| Number of memory slots: | 4 |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| ECC сompatibility: | Non-ECC |
| Depth: | 244 mm |
| Width: | 305 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wireless statistics: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi frequency: | 2,4 Ghz / 5 GHz / 6 GHz |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| Wi-Fi standards: | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11b, IEEE 802.11n, 802.11 axe, IEEE 802.11ax |
| LAN controller: | Killer E3100G |
| TPM connector: | Yes |
| CPU fan connector: | 2 |
| Front panel audio connector: | Yes |
| Thunderbolt headers: | 1 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| Pump connector: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| Chassis fan connector (4-pin): | 4 |
| 8-pin power connector 12 V: | 2 |
| Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports: | 1 |
| AIO pump fan connector: | 1 |
| BIOS type: | UEFI AMI |
| Motherboard: | Yes |
| Cables included: | SATA III 2 pcs., ARGB Splitter Cable x 1, Thermistor Cable x 1 |
| Wi-Fi antenna: | Yes |
| RAID levels: | 0, 5, 1, 10 |
| RAID support: | Yes |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| USB 2.0 Type-A ports quantity: | 2 |
| Headphone outputs: | 1 |
| Microphone in: | Yes |
| Number of antenna connectors: | 2 |
| Number of Thunderbolt 4 USB-C ports: | 2 |
| SPDIF optical output: | Y |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Certificates: | ErP/EuP ready, CE, FCC |
