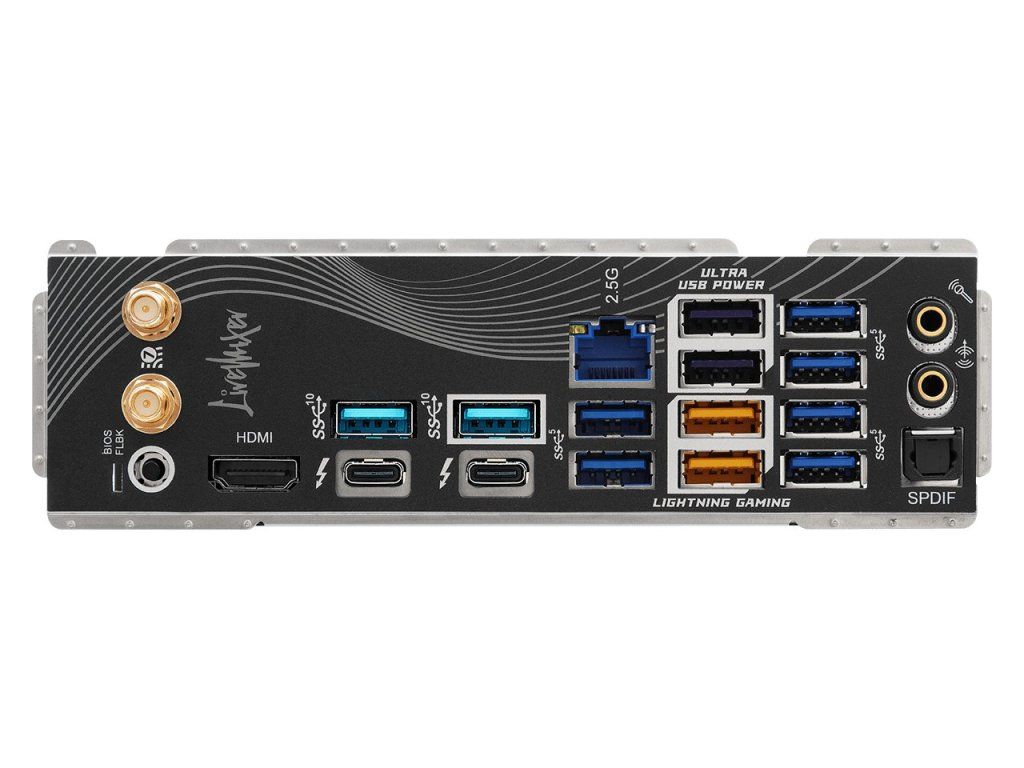

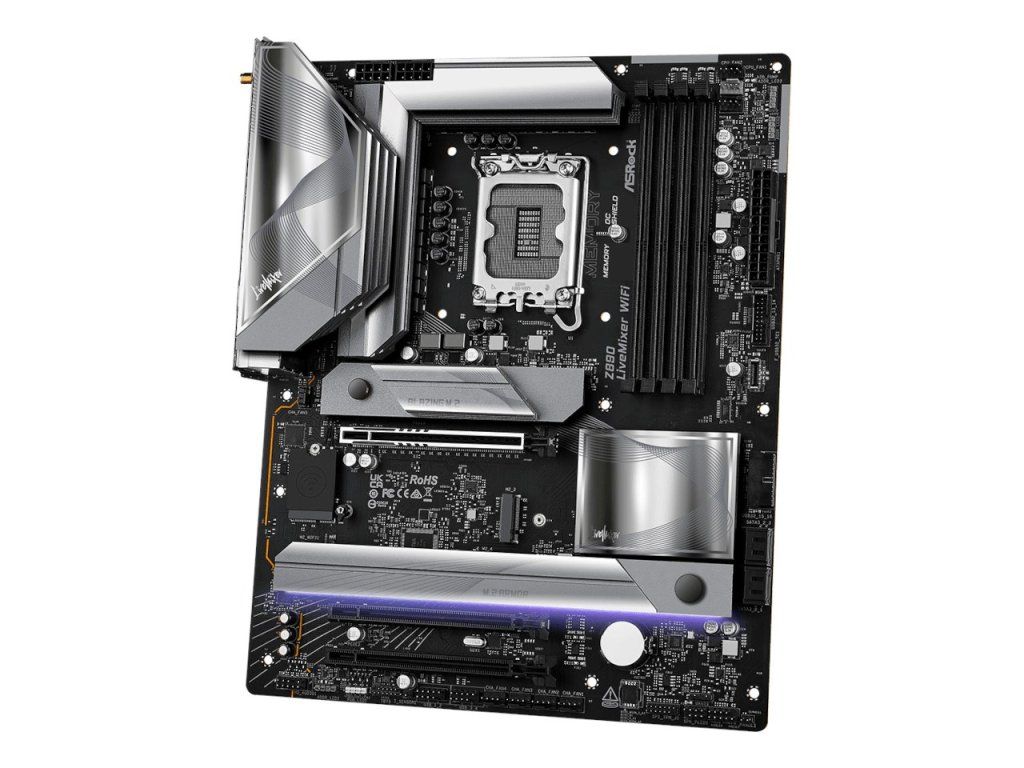

ASRock Z890 LiveMixer WiFi - Motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1851 |
|---|---|
| Greutate: | 1.8 kg |
| EAN: | 4710483949715 |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Windows operating systems supported: | Windows 11 x64 |
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | Intel |
| Operating system architecture: | 64-bit |
| Motherboard form factor: | ATX |
| Motherboard chipset: | Intel Z890 |
| Supported memory clock speed (max): | 9066 MHz |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5 non-ECC |
| Memory channels: | Dual-channel |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| MU-MIMO: | Yes |
| Wi-Fi standards: | 802.11a, 802.11g, 802.11b, Wi-Fi 6E (802.11ax), 802.11 axe, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n) |
| Ethernet LAN: | Yes |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.4 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Thunderbolt 4 ports quantity: | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| 8-pin power connector 12 V: | 2 |
| RGB LED pin header: | Yes |
| CPU fan connector: | 2 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| SPI TPM socket: | 1 |
| USB 2.0 connectors: | 2 |
| LED and speaker power socket: | 1 |
| AIO pump fan connector: | 1 |
| BIOS type: | UEFI AMI |
| Supported storage drive interfaces: | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |
| Microphone in: | Yes |
| HDMI ports quantity: | 1 |
| Number of USB 3.2 Gen 1 ports: | 4 |
| Line-out: | Yes |
| MIC input: | 1 |
| External antenna connector: | Yes, x 2 |
| S/PDIF out port: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Flashback BIOS button: | Yes |
| PCI Express x16 (Gen 5.x) slots: | 1 |
