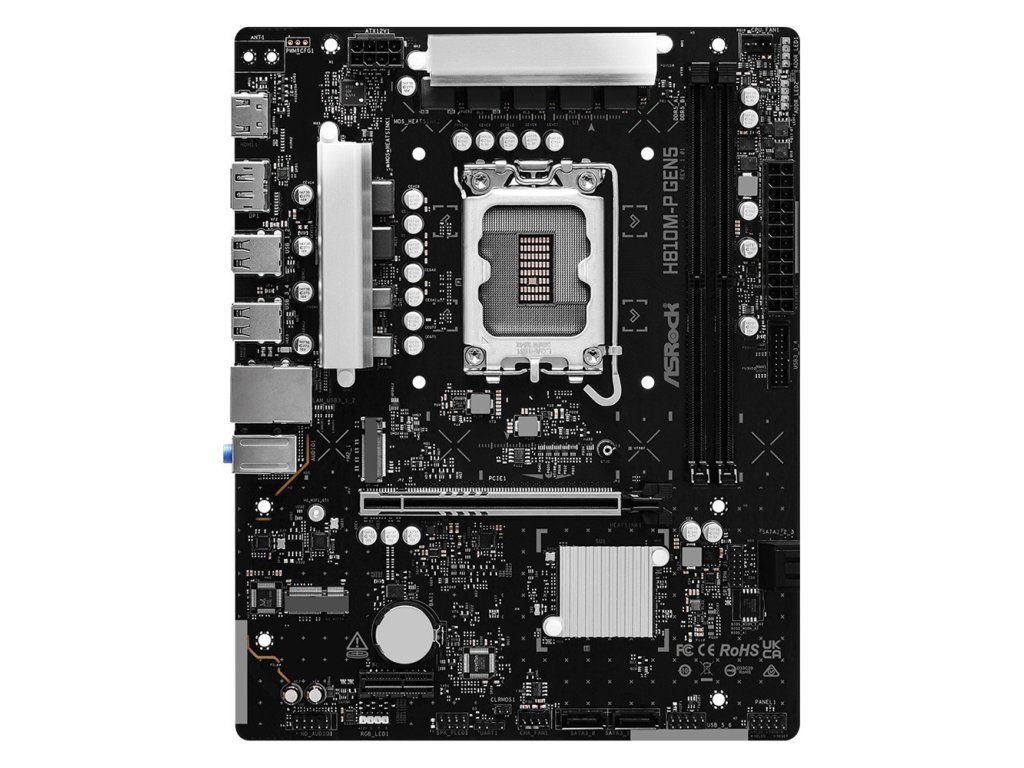

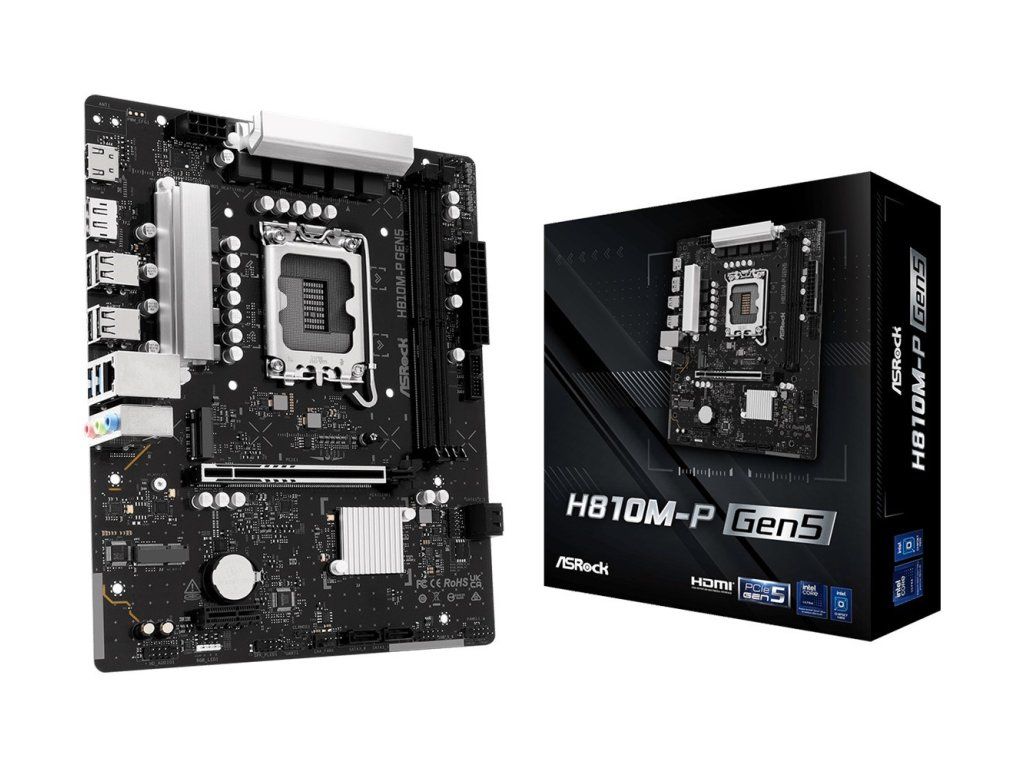

Asrock H810M-P GEN5 motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1851 |
|---|---|
| Greutate: | 0.835 kg |
| EAN: | 4711581494206 |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| Supported processor sockets: | LGA 1851 |
| Processor socket: | LGA 1851 (Socket V1) |
| HDCP version: | 2.3 |
| Maximum resolution: | 7680 x 4320 pixels |
| HDCP: | Yes |
| Motherboard form factor: | micro ATX |
| Windows operating systems supported: | Windows 11 x64 |
| Motherboard chipset family: | Intel |
| Power source type: | ATX |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel H810 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Memory channels: | Dual-channel |
| Supported memory clock speed (max): | 6400 MHz |
| ECC сompatibility: | Non-ECC |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| Width: | 244 mm |
| Depth: | 193 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| RGB LED pin header: | Yes |
| Number of chassis fan connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of CPU fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| BIOS type: | UEFI AMI |
| Number of storage drives supported: | 5 |
| Number of HDDs supported: | 4 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| USB 2.0 ports quantity: | 4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Headphone outputs: | 1 |
| Line-in: | No |
| HDMI version: | 2.1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| DisplayPort version: | 1.4 |
| PCI Express x1 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
