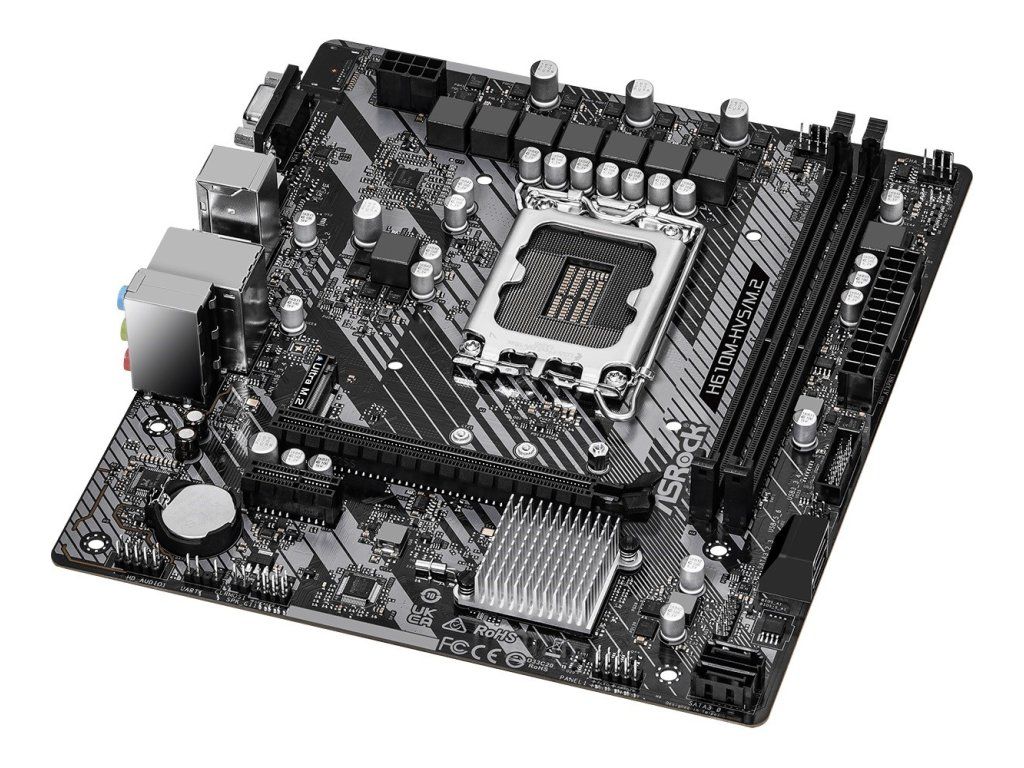

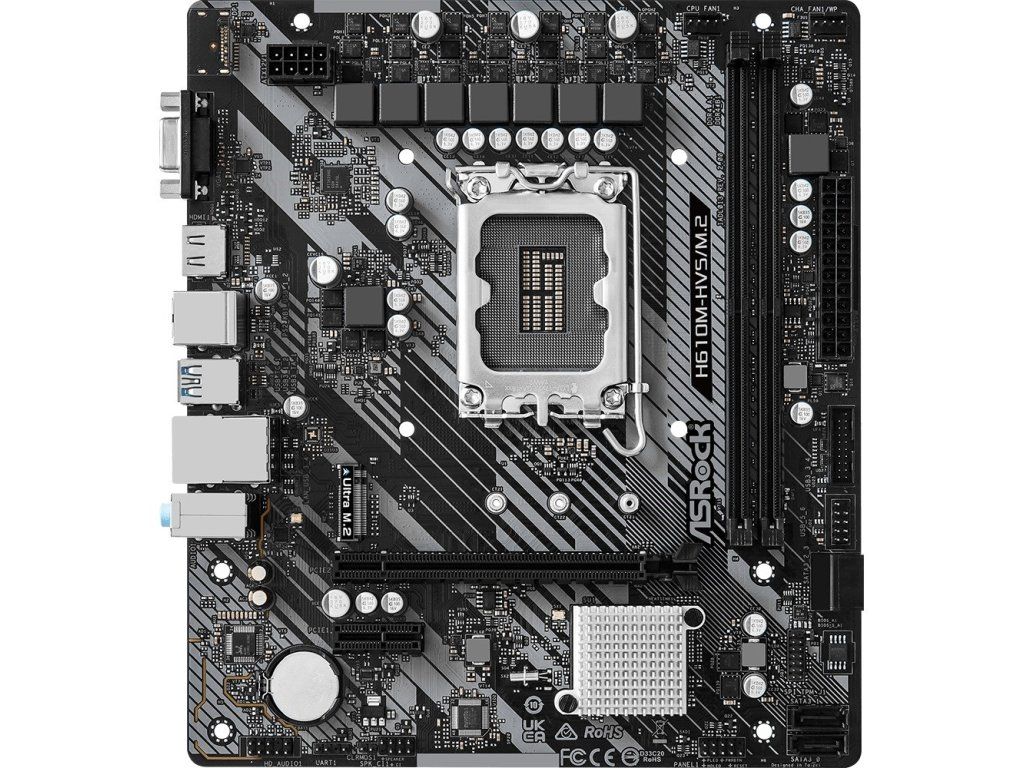

Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.79 kg |
| EAN: | 4710483939914 |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| PC health monitoring: | CPU, Voltage, Temperature, Fan |
| Audio chip: | Realtek ALC887 / Realtek ALC897 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel H610 |
| Audio output channels: | 7.1 channels |
| Supported memory clock speeds: | 3200 MHz |
| Maximum internal memory: | 64 GB |
| Number of memory slots: | 2 |
| Supported memory types: | DDR4-SDRAM |
| Unbuffered memory: | Yes |
| Width: | 197 mm |
| Depth: | 188 mm |
| Ethernet LAN: | Yes |
| Wake-on-LAN ready: | Yes |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| ATX Power connector (24-pin): | Yes |
| 12V power connector: | Yes |
| Number of M.2 (M) slots: | 1 |
| Number of chassis fan connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Chassis intrusion connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| TPM connector: | Yes |
| USB 2.0 connectors: | 1 |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | SATA III |
| VGA (D-Sub) ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI version: | 2.1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
