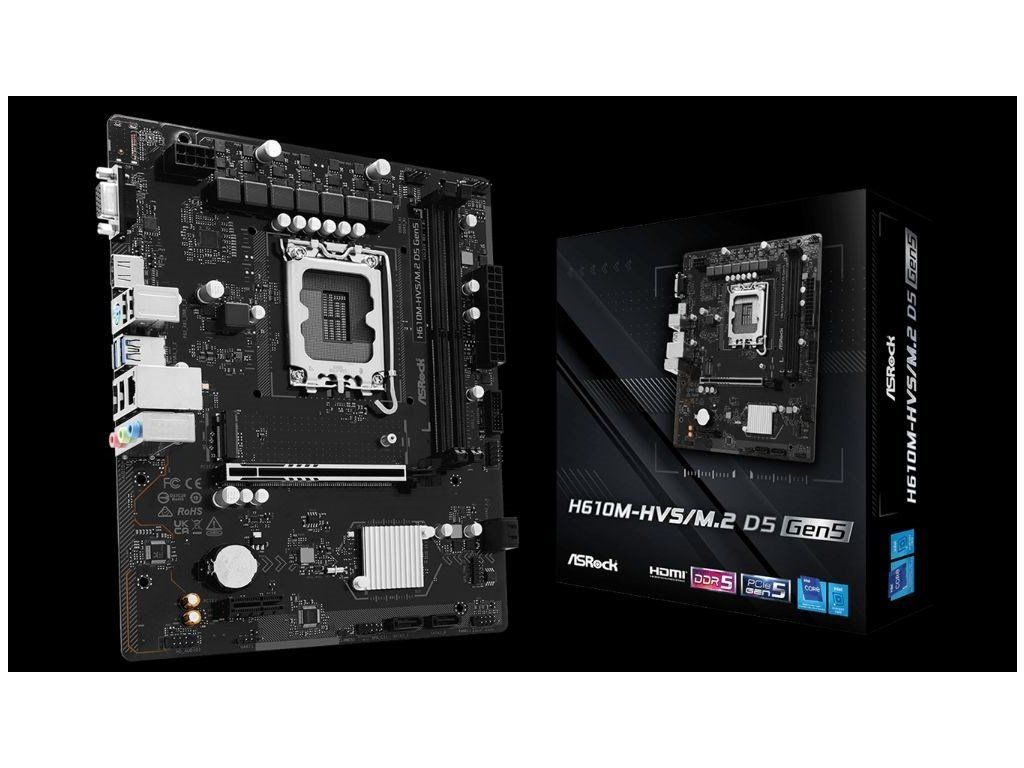

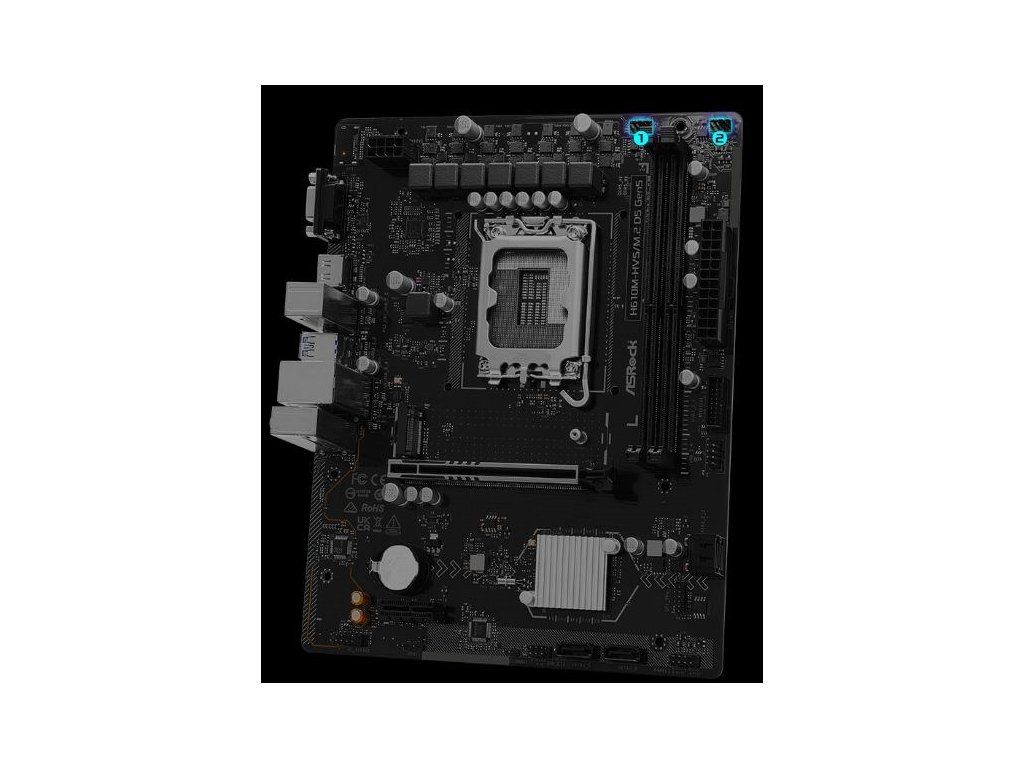

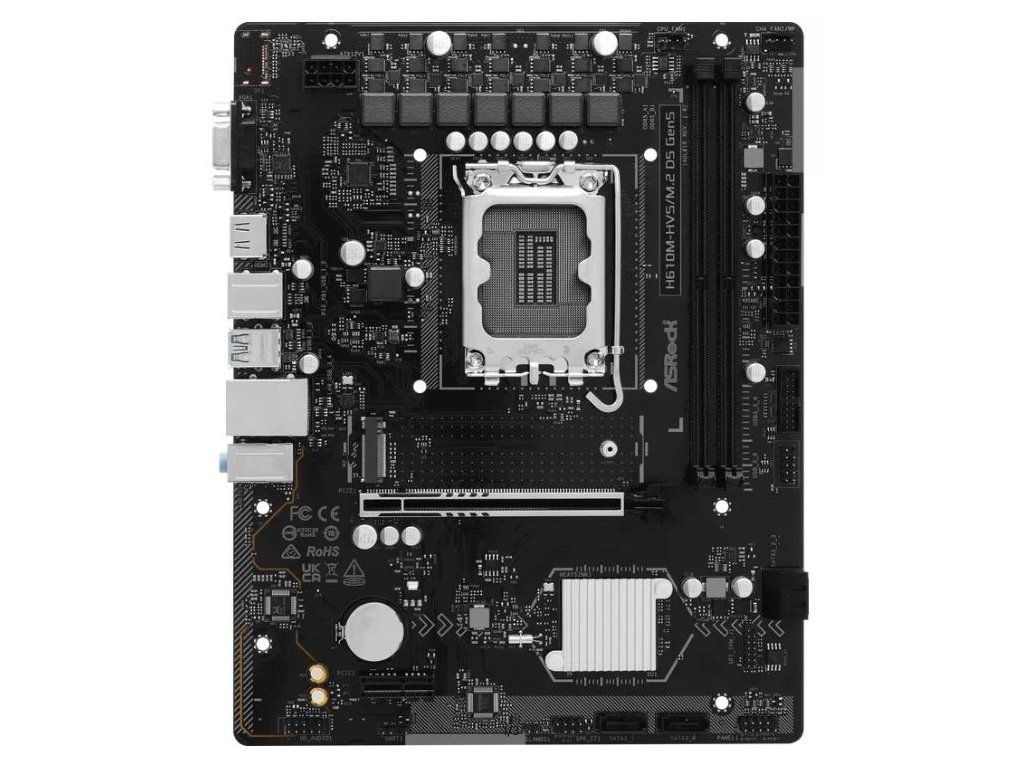

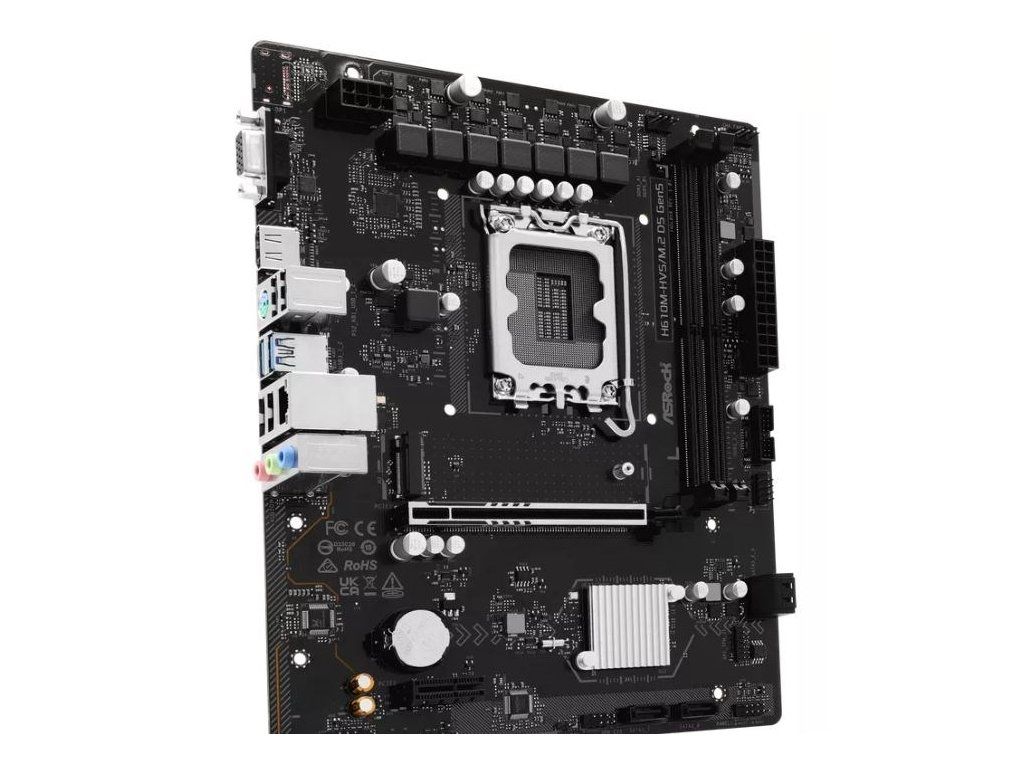

Asrock H610M-HVS/M.2 D5 GEN5 motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.785 kg |
| EAN: | 4711581492448 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel Core i7 13th Gen, Intel Core i3 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i3 13th Gen, Intel Core i9 13th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i9 14th Gen |
| Processor socket: | LGA 1700 |
| On-board graphics card model: | Intel Iris Xe Graphics |
| HDCP: | Yes |
| HDCP version: | 2.3 |
| Motherboard chipset: | Intel H610 |
| Audio chip: | Realtek ALC897 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 5600, 4800 MHz |
| Number of memory slots: | 2 |
| Maximum internal memory: | 128 GB |
| Depth: | 193 mm |
| Width: | 244 mm |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek 8111H |
| Ethernet LAN: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 1 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 1 |
| 12V power connector: | Yes |
| CPU fan connector: | Yes |
| Chassis intrusion connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
