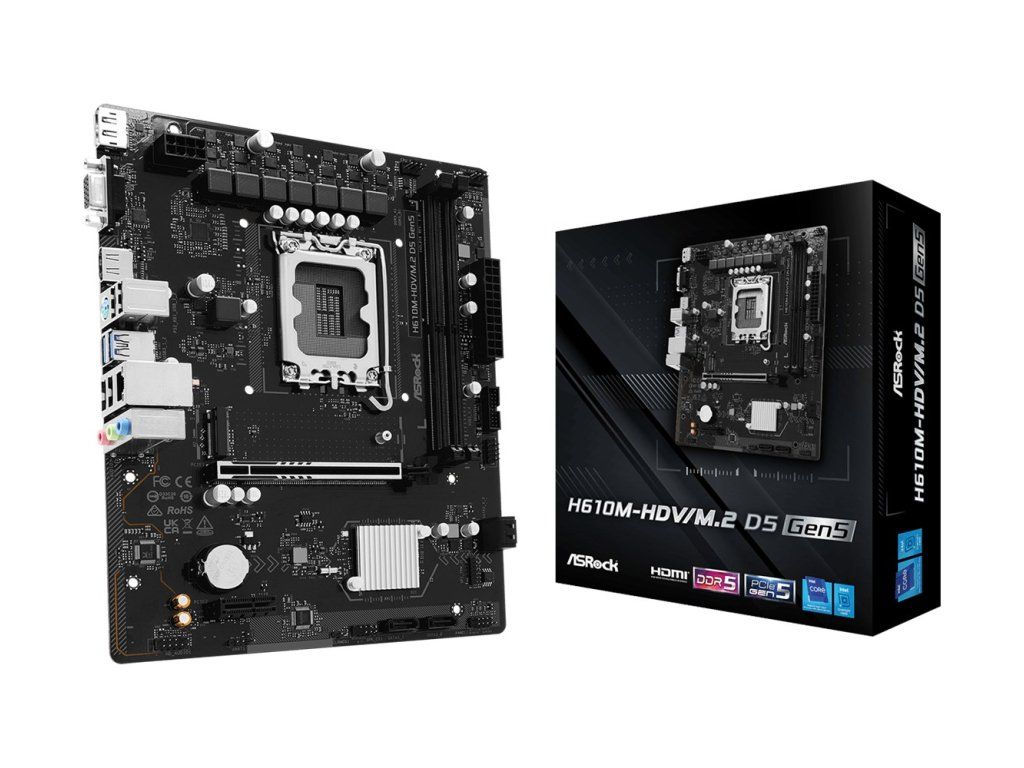

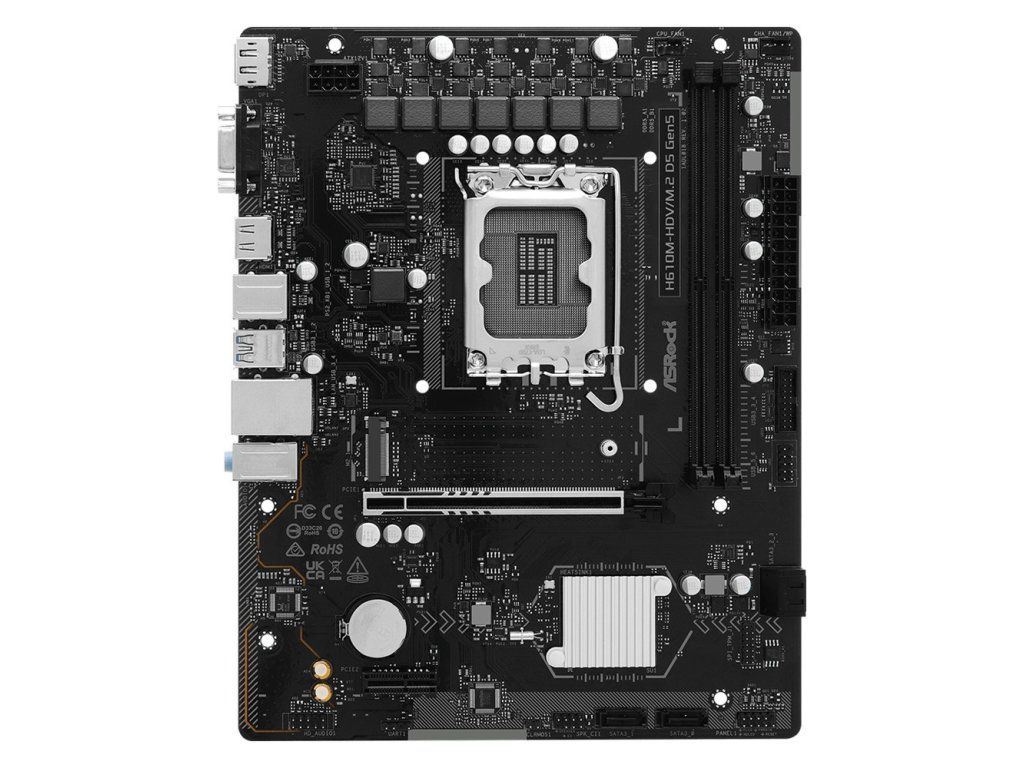

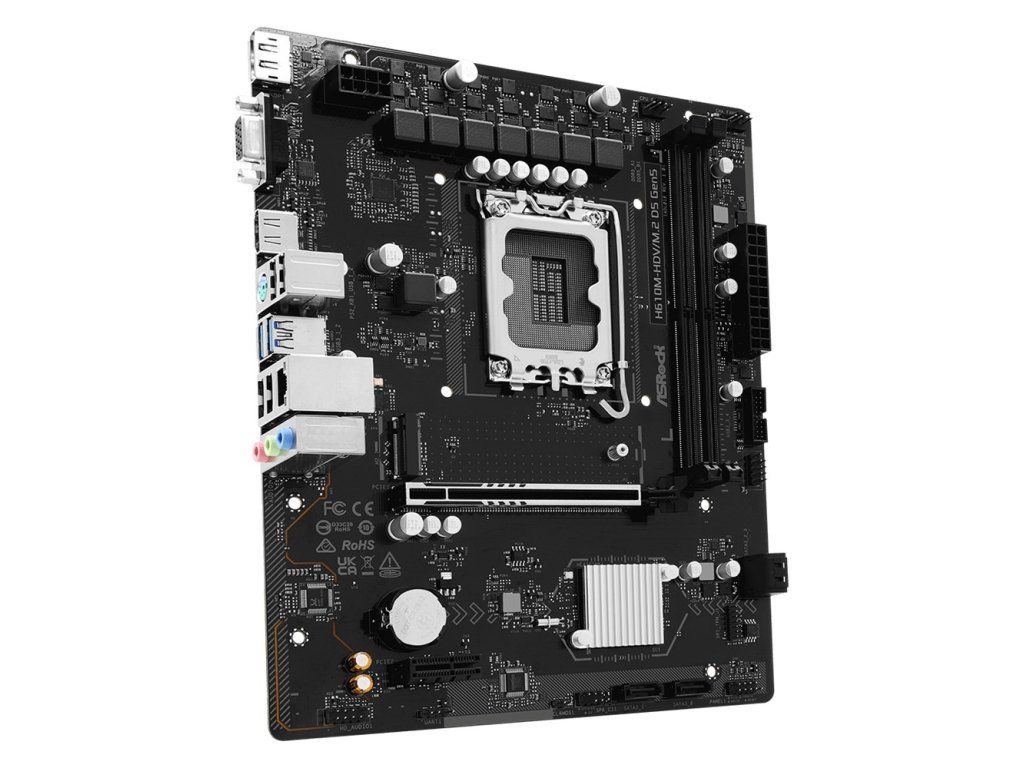

Asrock H610M-HDV/M.2 D5 Gen5 Intel H610 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.785 kg |
| EAN: | 4711581492431 |
| Maximum number of SMP processors: | 1 |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i7 13th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen |
| Processor manufacturer: | Intel |
| HDCP version: | 2.3 |
| On-board graphics card model: | Intel Iris Xe Graphics |
| HDCP: | Yes |
| Motherboard chipset: | Intel H610 |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Audio chip: | Realtek ALC897 |
| ECC сompatibility: | Non-ECC |
| Number of memory slots: | 2 |
| Maximum internal memory: | 128 GB |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| Width: | 244 mm |
| Depth: | 193 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Top Wi-Fi standard: | Not available |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| LAN controller: | Realtek RTL8111H |
| Number of EPS power connectors (8-pin): | 1 |
| Number of CPU fan connectors: | 1 |
| Number of chassis fan connectors: | 1 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| EPS power connector (8-pin): | Yes |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| USB 2.0 connectors: | 1 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Number of storage drives supported: | 5 |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| Line-in: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPort version: | 1.4 |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
