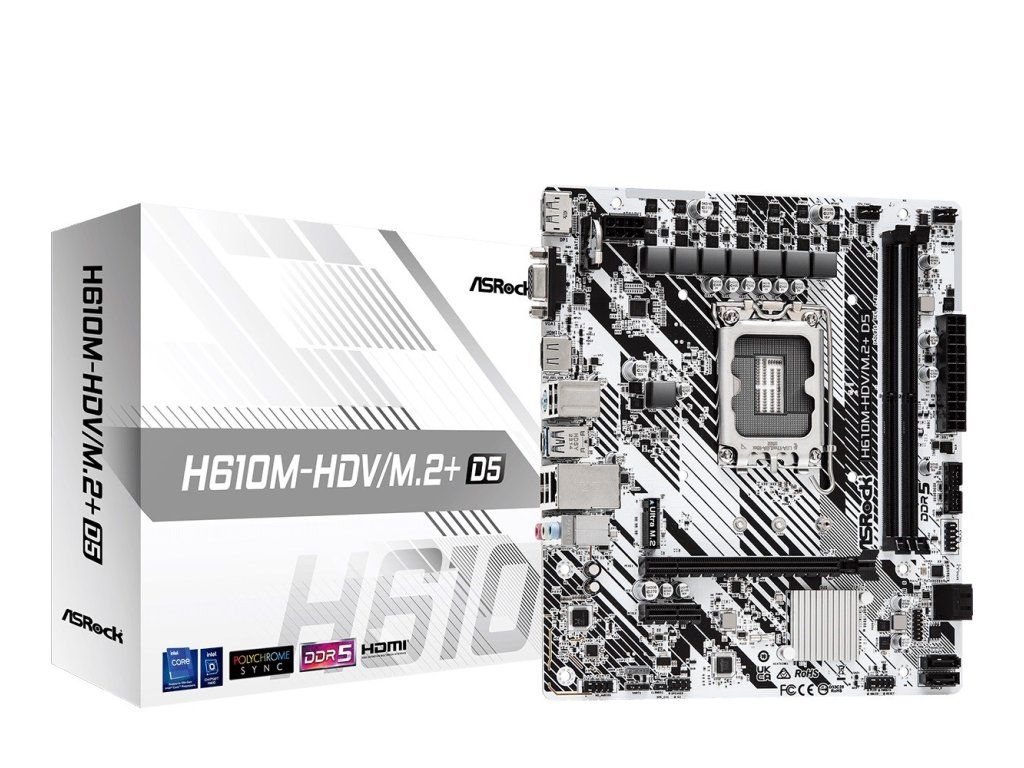

Asrock H610M-HDV/M.2+ D5 Intel H610 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.75 kg |
| EAN: | 4710483943478 |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron®, Intel® Pentium® |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Maximum resolution: | 7680 x 4320 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset: | Intel H610 |
| PC health monitoring: | CPU, Fan, Voltage, Temperature |
| Motherboard chipset family: | Intel |
| Audio chip: | Realtek ALC897 |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 2 |
| Maximum internal memory: | 96 GB |
| Supported memory clock speeds: | 5600 |
| Unbuffered memory: | Yes |
| Width: | 220 mm |
| Depth: | 193 mm |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek 8111H |
| Wake-on-LAN ready: | Yes |
| RGB LED pin header: | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| Chassis intrusion connector: | Yes |
| 12V power connector: | Yes |
| Number of chassis fan connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| USB 2.0 connectors: | 1 |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| RAID support: | No |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPort version: | 1.4 |
| USB 2.0 ports quantity: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
