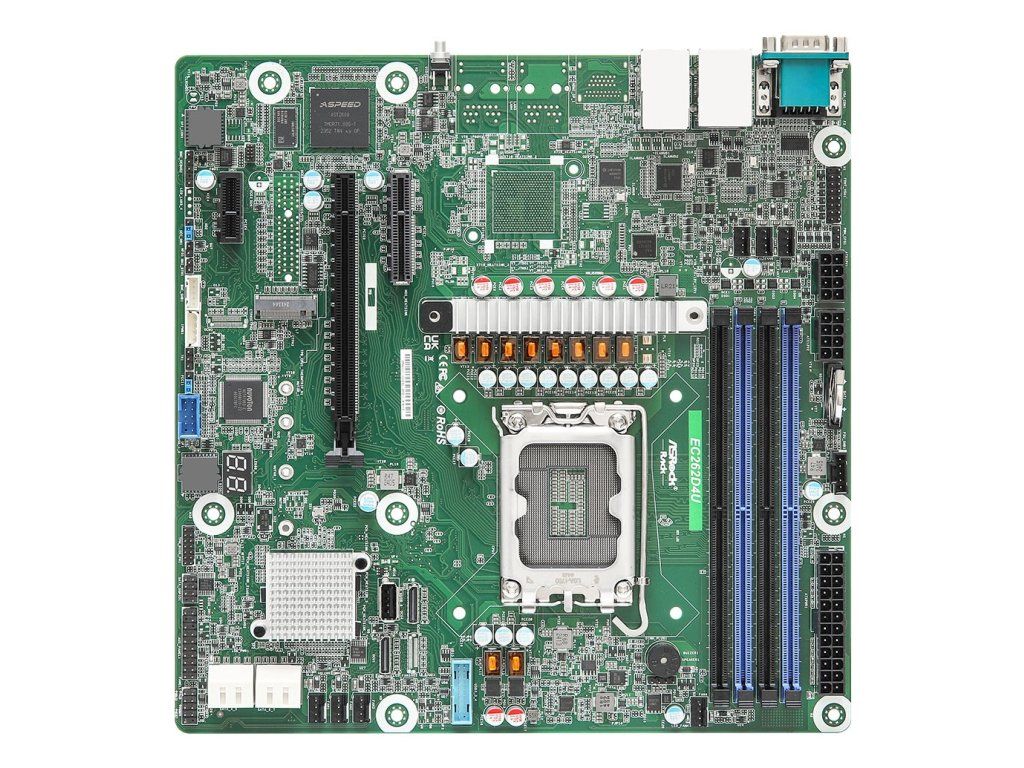

Asrock EC262D4U motherboard Intel C262 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | INTEL server motherboards |
|---|---|
| Greutate: | 1.03 kg |
| EAN: | 4711430522708 |
| Compatible processor series: | Intel® Xeon® |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| Motherboard chipset: | Intel C262 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| PC health monitoring: | CPU, Fan |
| Compatible operating systems: | Microsoft® Windows: - Windows® Server 2022 - Azure Stack HCI Linux: - RHEL 8.5 - SLES 15 SP3 - Ubuntu 21.04 LTS Hypervisor: - VMware ESXi 8.0 u1 - Linux KVM (Linux OSes) - Hyper-V (Windows® Server) |
| ECC сompatibility: | ECC |
| Number of memory slots: | 4 |
| Memory voltage: | 1.1 V |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Storage relative humidity (H-H): | 20 - 90% |
| Operating temperature (T-T): | 10 - 35 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Depth: | 244 mm |
| Width: | 244 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| TPM connector: | Yes |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| Number of SATA III connectors: | 8 |
| USB 2.0 connectors: | 3 |
| BIOS memory size: | 256 Mbit |
| BIOS type: | AMI |
| ACPI version: | 6.4 |
| System Management BIOS (SMBIOS) version: | 2.8 |
| RAID levels: | 1, 10, 5, 0 |
| Supported storage drive interfaces: | M.2 |
| RAID support: | Yes |
| COM ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| IPMI LAN (RJ-45) port: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x1 (Gen 4.x) slots: | 1 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
