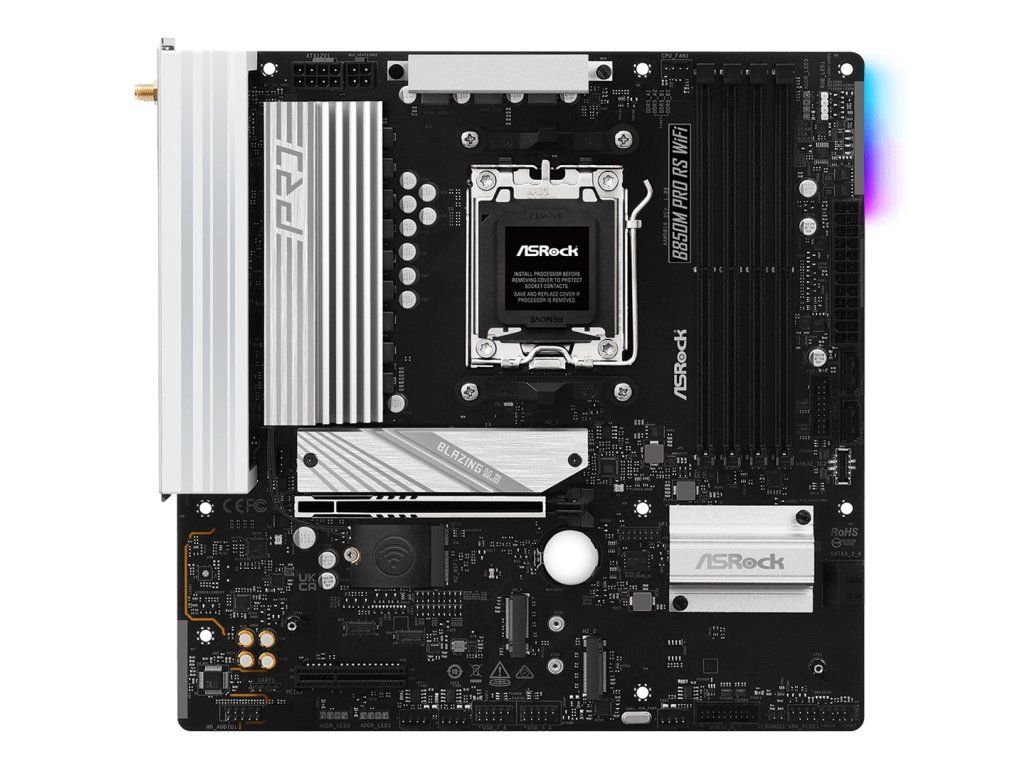

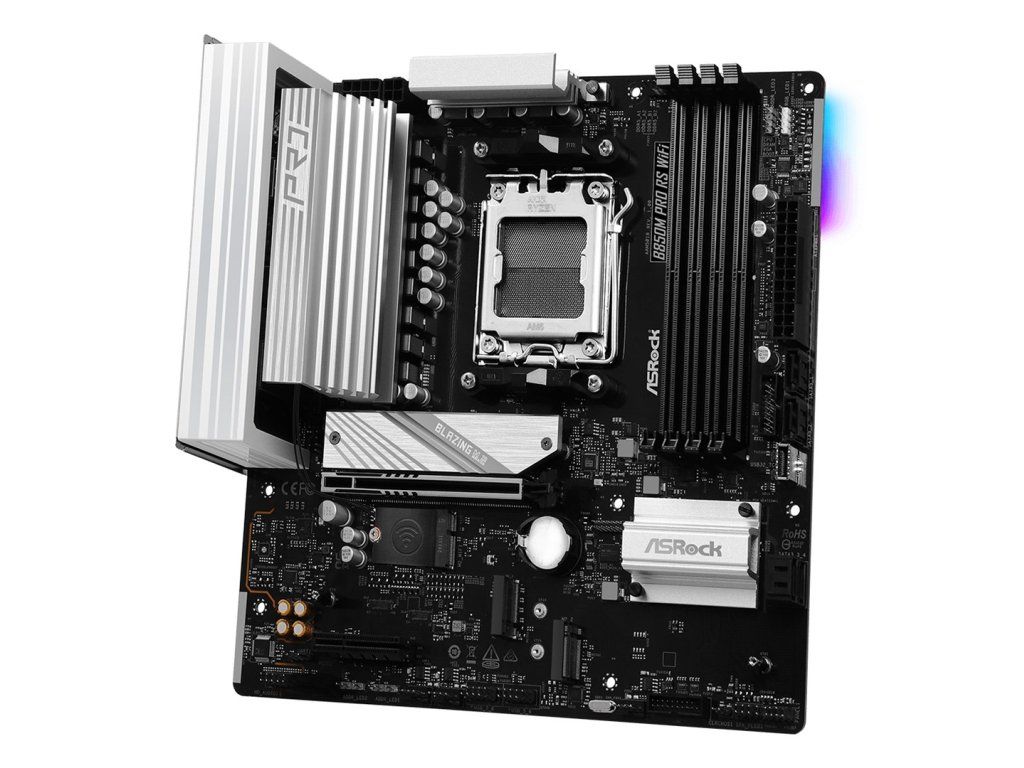

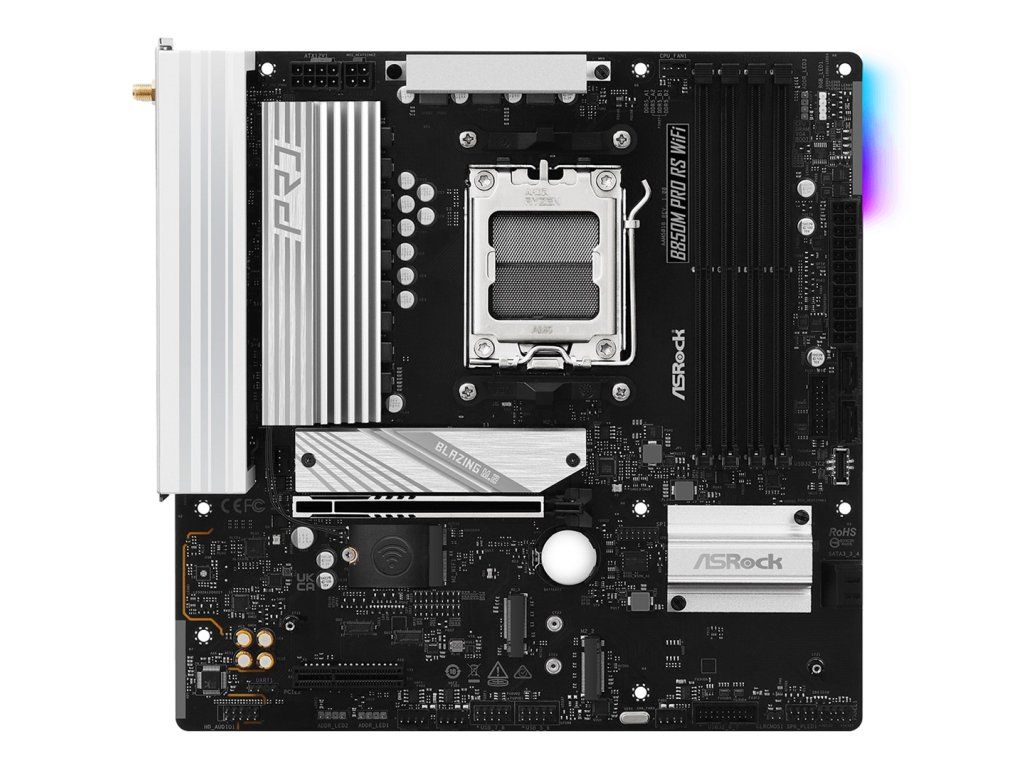

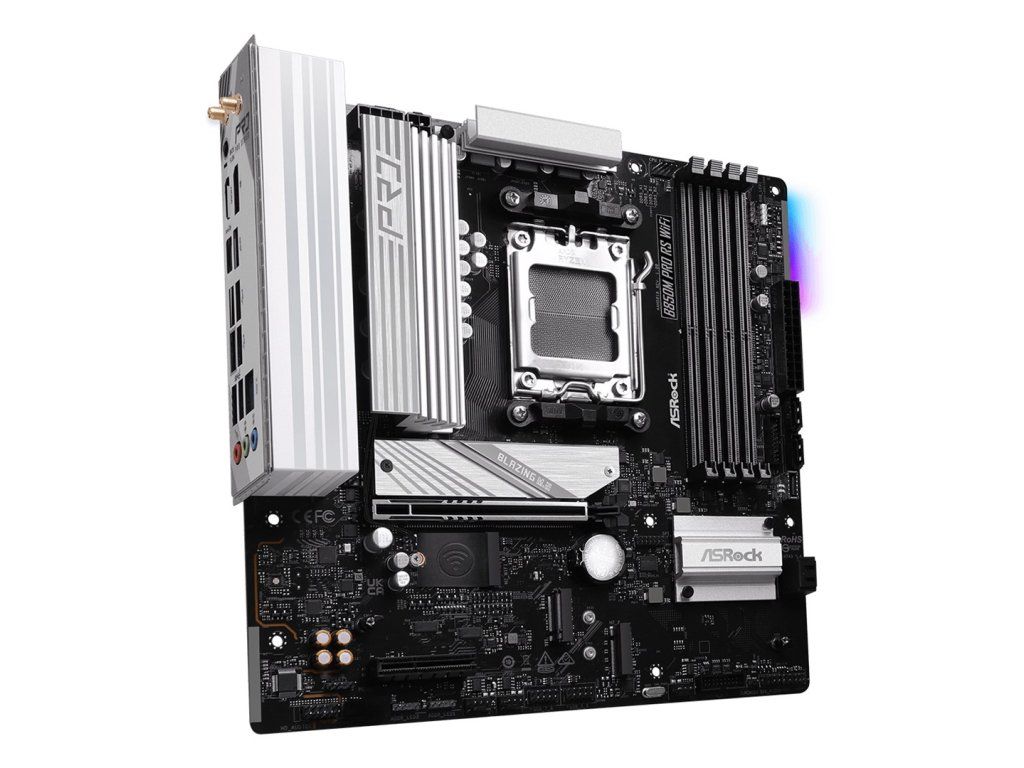

Asrock B850M Pro RS WiFi AMD B850 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.295 kg |
| EAN: | 4711581490352 |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Maximum resolution: | 3840 x 2160 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset: | AMD B850 |
| Product colour: | Black |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Certification: | FCC, CE, ErP/EuP ready |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| ECC сompatibility: | ECC & Non-ECC |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Width: | 244 mm |
| Depth: | 244 mm |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Wi-Fi standards: | Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.2 |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Ethernet LAN: | Yes |
| Front panel audio connector: | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 3 |
| ATX Power connector (24-pin): | Yes |
| USB 2.0 connectors: | 2 |
| Number of SATA III connectors: | 4 |
| Number of chassis fan connectors: | 3 |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 1 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |

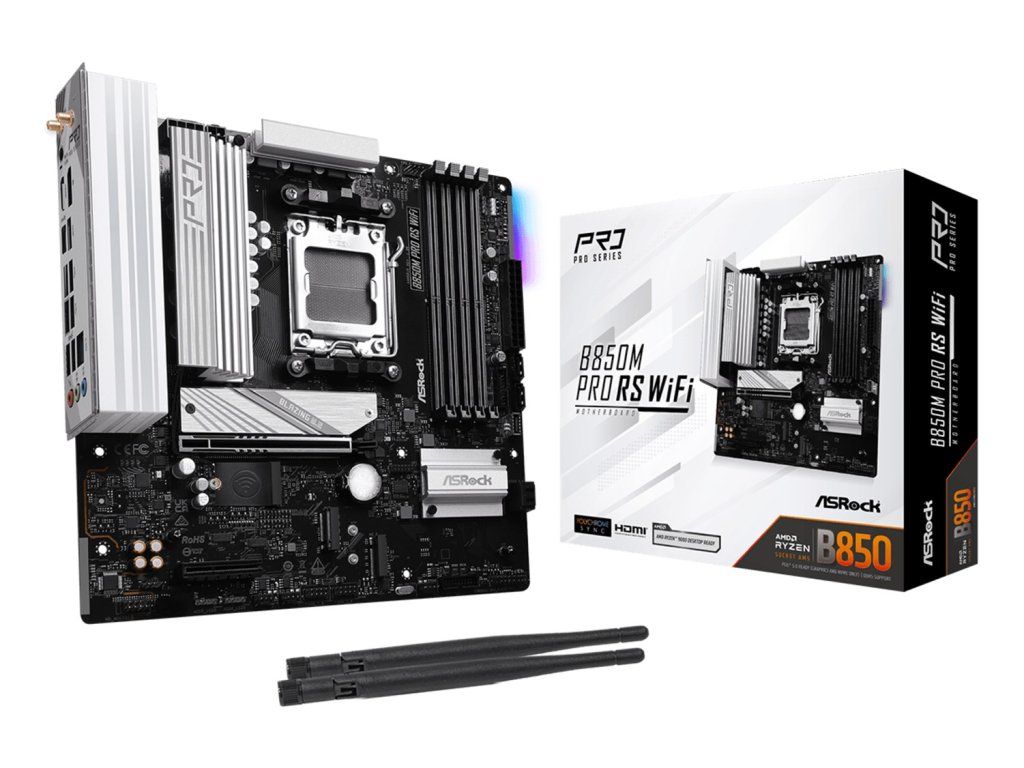

| Antenna included: | Yes |
| Cables included: | SATA |
| RAID levels: | 10, 1, 0 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported: | 7 |

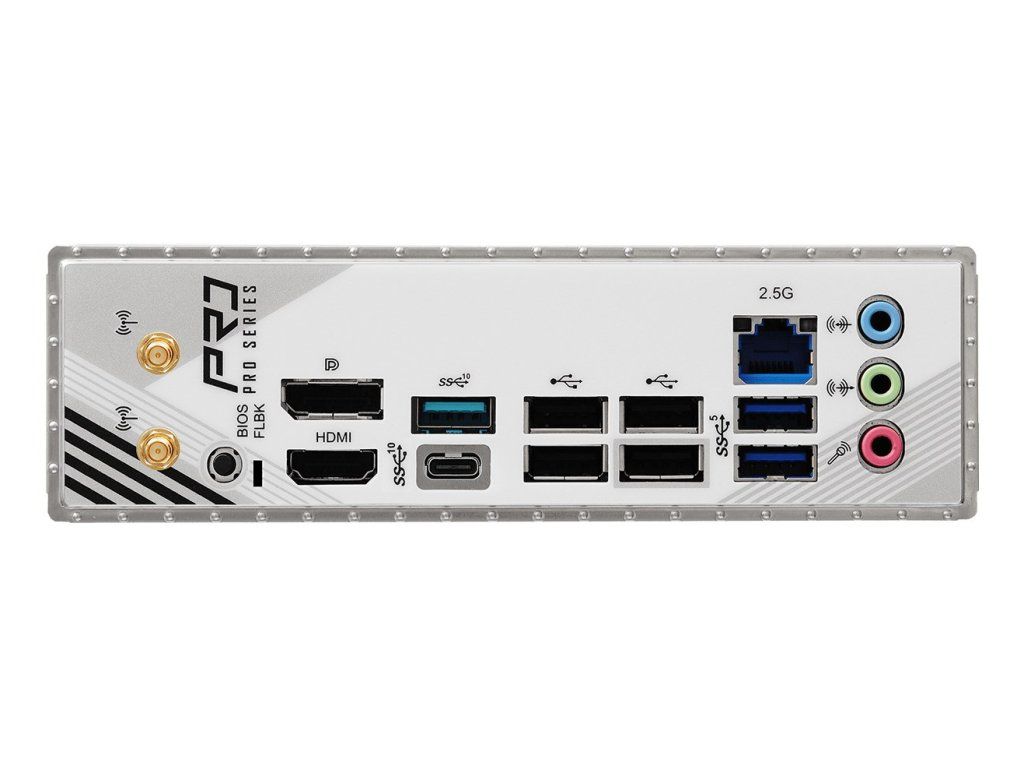

| DisplayPorts quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| USB connector type: | USB Type-A, USB Type-C |
| DisplayPort version: | 1.4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Microphone in: | Yes |
| Line-in: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Headphone outputs: | 3 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| Number of M.2 (M) slots: | 3 |
| 3rd M.2 largest key size: | 2280 |
| 2nd M.2 largest key size: | 2280 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
