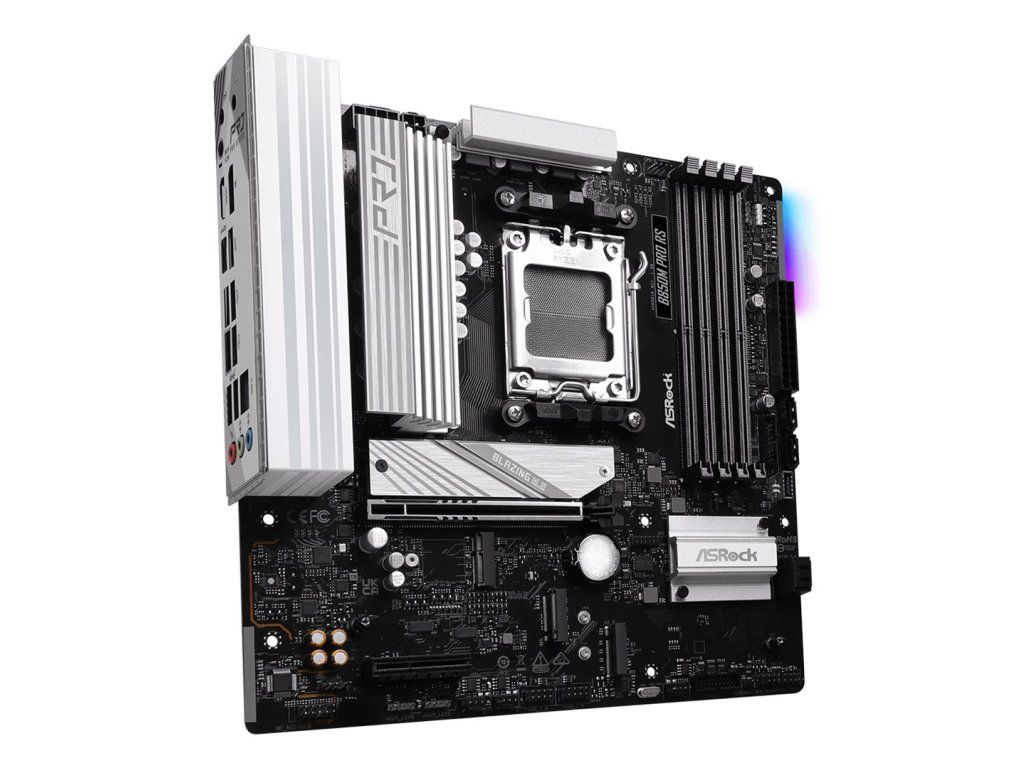

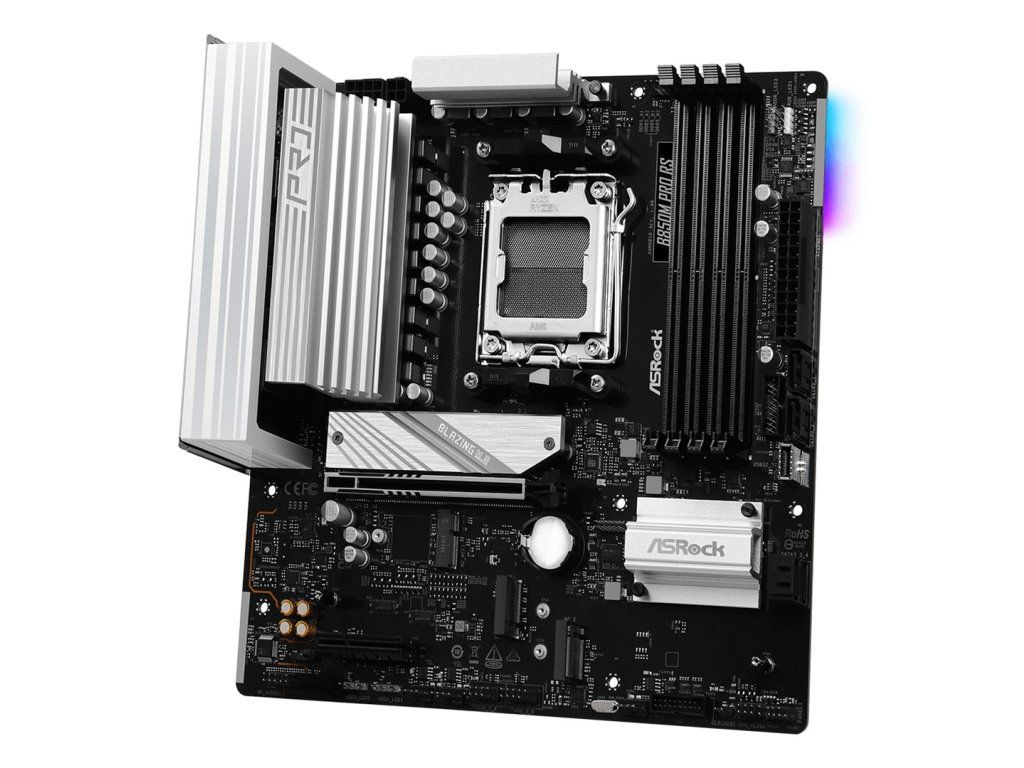

Asrock B850M Pro RS AMD B850 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.2 kg |
| EAN: | 4711581490345 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Supported processor sockets: | Socket AM5 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| HDCP: | Yes |
| Maximum resolution: | 3840 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| Product colour: | Black |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B850 |
| Certification: | FCC, CE, ErP/EuP |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Depth: | 244 mm |
| Width: | 244 mm |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| LAN controller: | Dragon RTL8125BG |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Number of EPS power connectors (8-pin): | 1 |
| ATX Power connector (24-pin): | Yes |
| TPM connector: | Yes |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of SATA III connectors: | 4 |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 3 |
| Number of chassis fan connectors: | 3 |
| CPU fan connector: | Yes |
| USB 2.0 connectors: | 2 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Screws included: | Yes |
| Supported storage drive interfaces: | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID support: | Yes |
| RAID levels: | 1, 10, 0 |
| Supported storage drive types: | HDD & SSD |
| Number of storage drives supported: | 7 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| Microphone in: | Yes |
| USB connector type: | USB Type-C, USB Type-A |
| Headphone outputs: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Line-in: | Yes |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty. |
