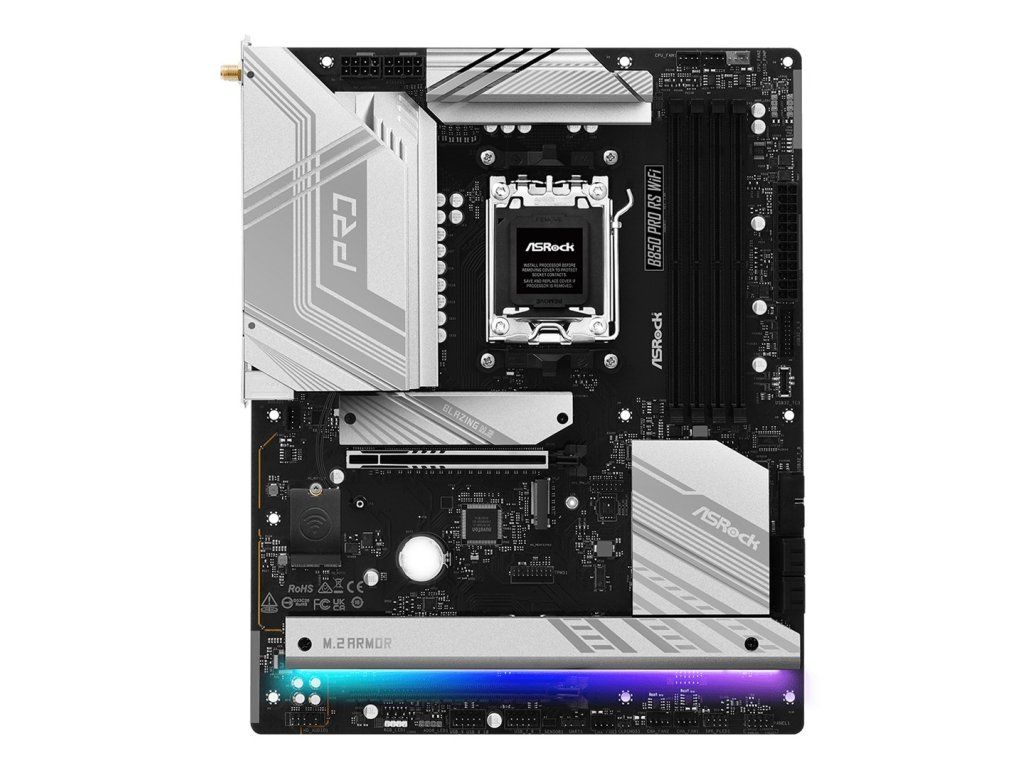

Asrock B850 Pro RS WiFi AMD B850 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.98 kg |
| EAN: | 4711581490178 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor socket: | Socket AM5 |
| Motherboard chipset: | AMD B850 |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Maximum internal memory: | 256 GB |
| ECC сompatibility: | ECC |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Width: | 305 mm |
| Depth: | 244 mm |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards: | 802.11g, 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 6E (802.11ax) |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.2 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Front panel audio connector: | Yes |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| Number of chassis fan connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| Number of EPS power connectors (8-pin): | 2 |
| Number of CPU fan connectors: | 2 |
| RGB LED pin header: | Yes |
| USB 3.2 Gen 2x2 connectors: | 1 |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 0, 1, 10 |
| Number of storage drives supported: | 8 |
| USB 2.0 ports quantity: | 6 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Microphone in: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Line-in: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
