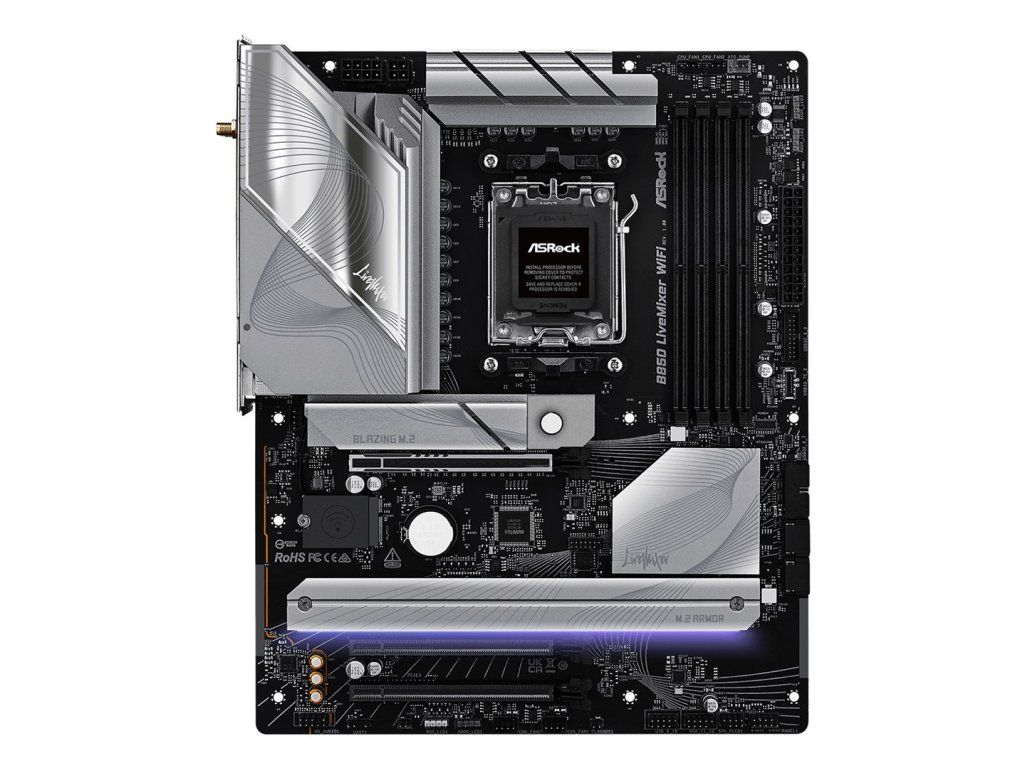

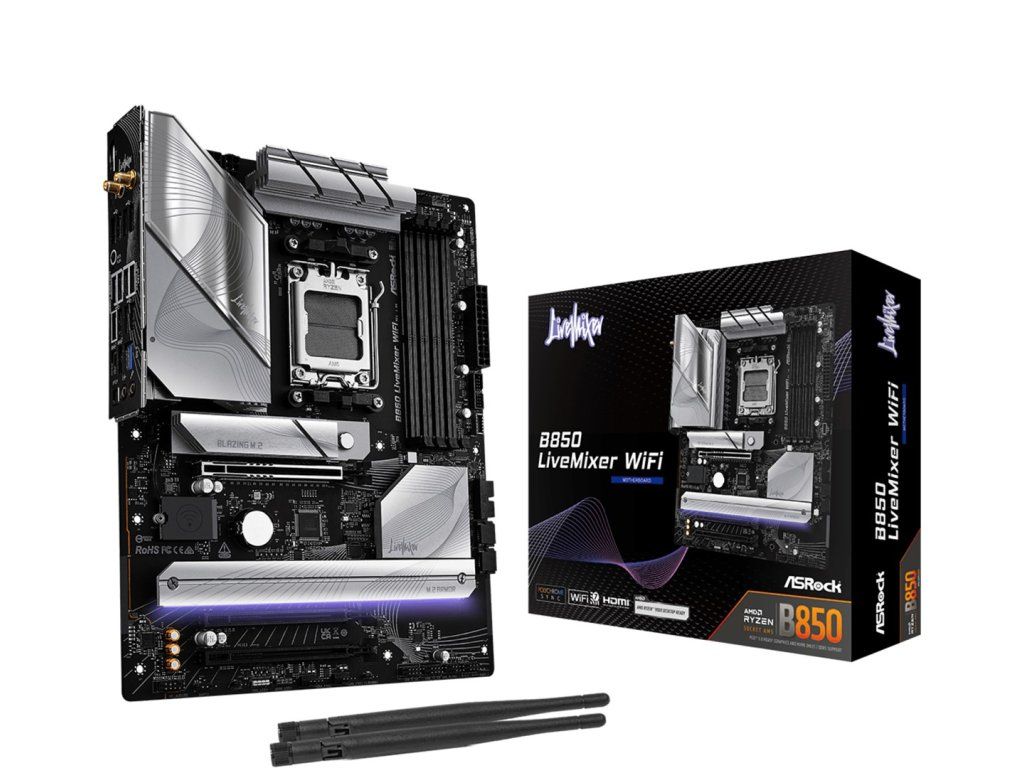

Asrock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.065 kg |
| EAN: | 4711581490154 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| Maximum resolution: | 3840 x 2160 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| Product colour: | Black |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B850 |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Certification: | FCC, CE, ErP/EuP |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Width: | 305 mm |
| Depth: | 244 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.4 |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of SATA III connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| Number of chassis fan connectors: | 3 |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| USB 3.2 Gen 2x2 connectors: | 1 |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 4 |
| Number of water pump connectors: | 1 |
| BIOS type: | UEFI AMI |
| Antenna included: | Yes |
| Cables included: | SATA |
| RAID support: | Yes |
| Supported storage drive interfaces: | PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 10, 1, 0 |
| Number of storage drives supported: | 5 |
| WiFi-AP antenna jack: | 2 |
| Headphone outputs: | 1 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| S/PDIF out port: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 2.0 ports quantity: | 8 |
| USB connector type: | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| 1st M.2 largest key size: | 2280 |
| 3rd M.2 largest key size: | 2280 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
