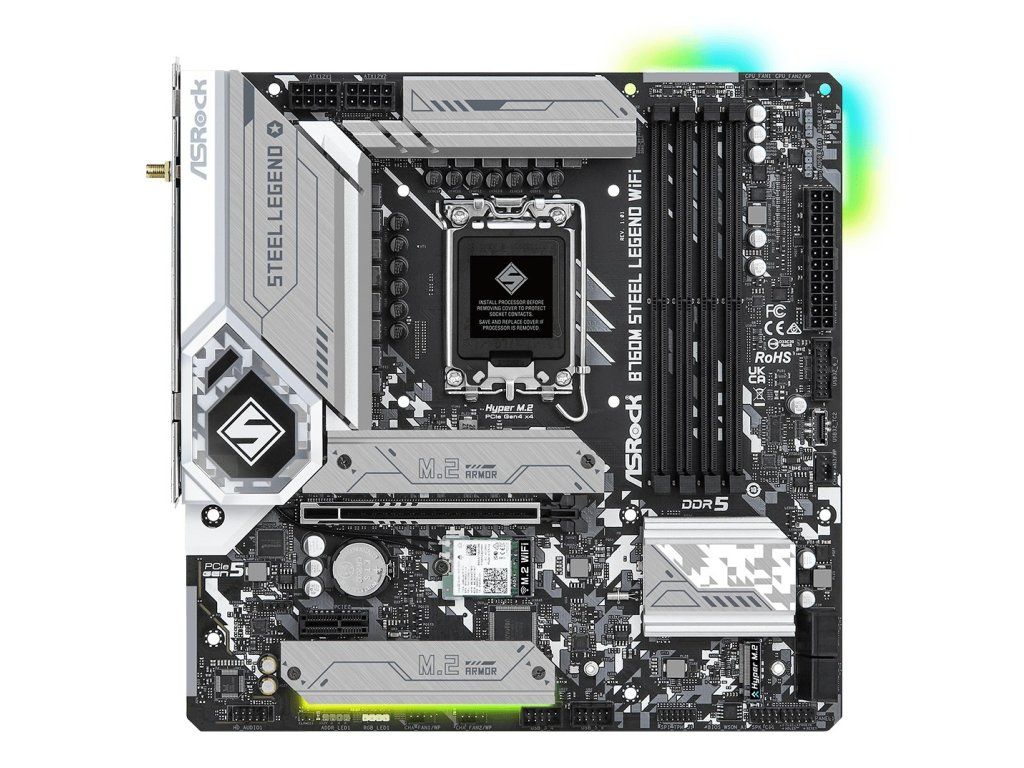

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.375 kg |
| EAN: | 4710483941795 |
| Maximum number of SMP processors: | 1 |
| Processor socket: | LGA 1700 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 |
| Audio chip: | Realtek ALC897 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 128 GB |
| ECC сompatibility: | Non-ECC |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Depth: | 244 mm |
| Width: | 244 mm |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Wi-Fi standards: | 802.11a, Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| Number of storage drives supported: | 7 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Line-in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x4 (Gen 1.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x1 (Gen 4.x) slots: | 1 |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
