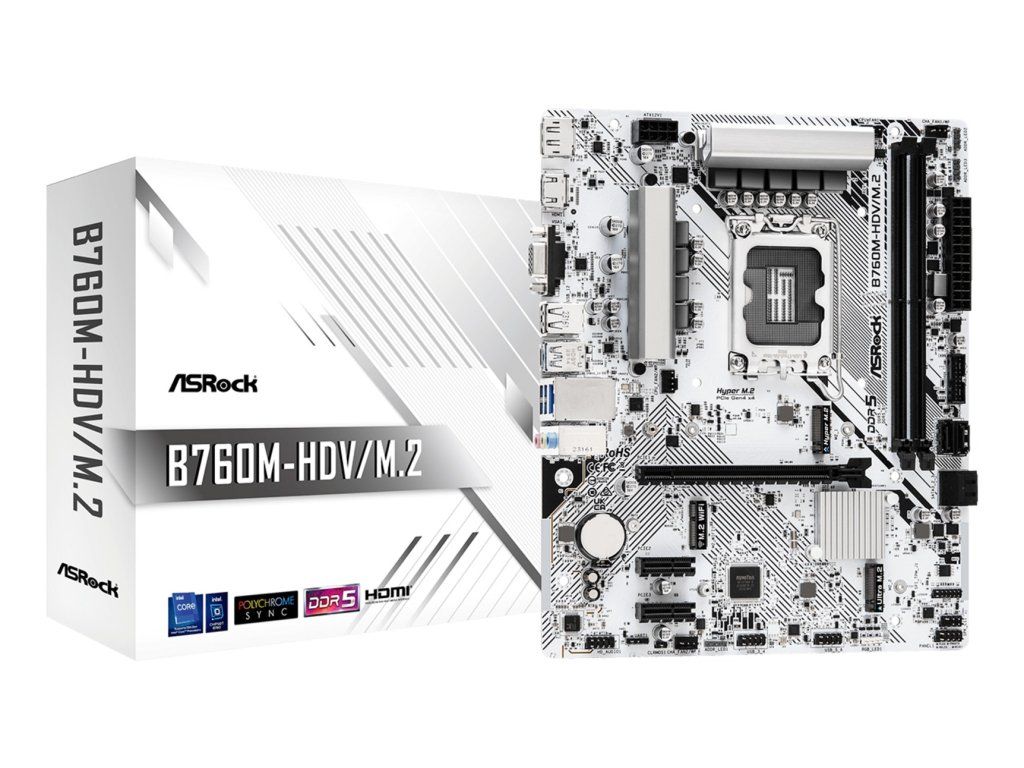

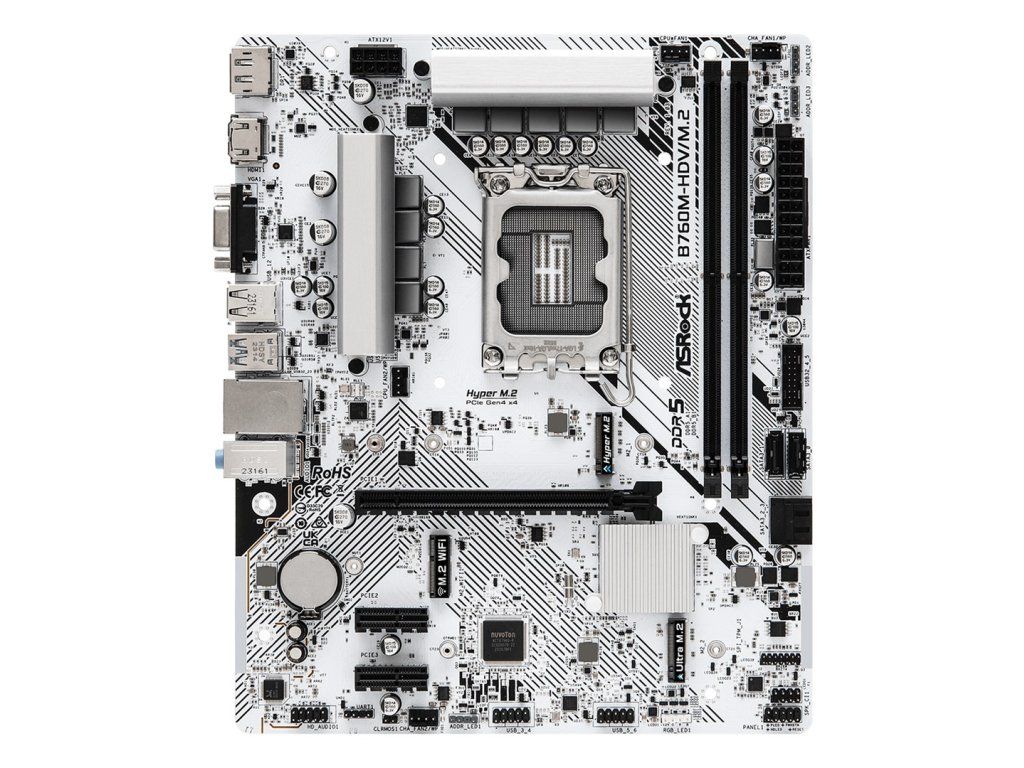

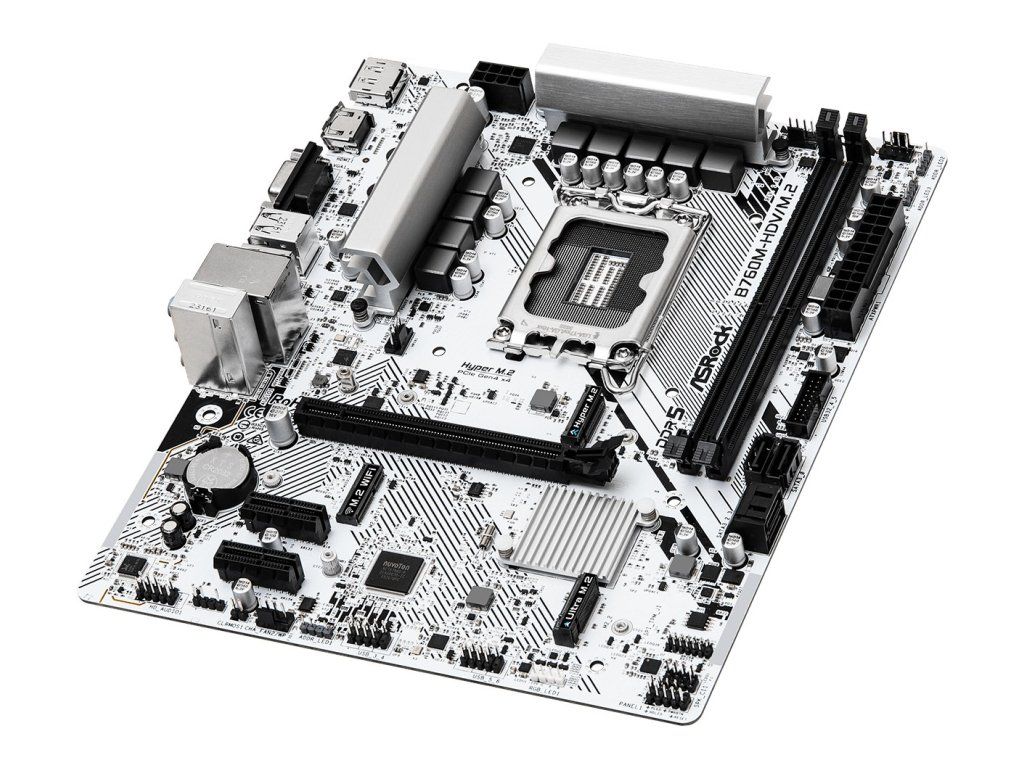

Asrock B760M-HDV/M.2 motherboard Intel B760 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.855 kg |
| EAN: | 4710483943485 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel Core i5 12th Gen, Intel Core i7 13th Gen, Intel Core i7 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen |
| Parallel processing technology support: | Not supported |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset: | Intel B760 |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| ECC сompatibility: | Non-ECC |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 96 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 2 |
| Depth: | 201 mm |
| Width: | 244 mm |
| Top Wi-Fi standard: | Not available |
| LAN controller: | Dragon RTL8125BG |
| Wi-Fi: | No |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| CPU fan connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| TPM connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| RGB LED pin header: | Yes |
| BIOS type: | EFI AMI |
| Cables included: | SATA |
| Screws included: | Yes |
| RAID levels: | 10, 0, 1, 5 |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| Number of storage drives supported: | 6 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| DisplayPort version: | 1.4 |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| Line-in: | Yes |
| VGA (D-Sub) ports quantity: | 1 |
| Microphone in: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
