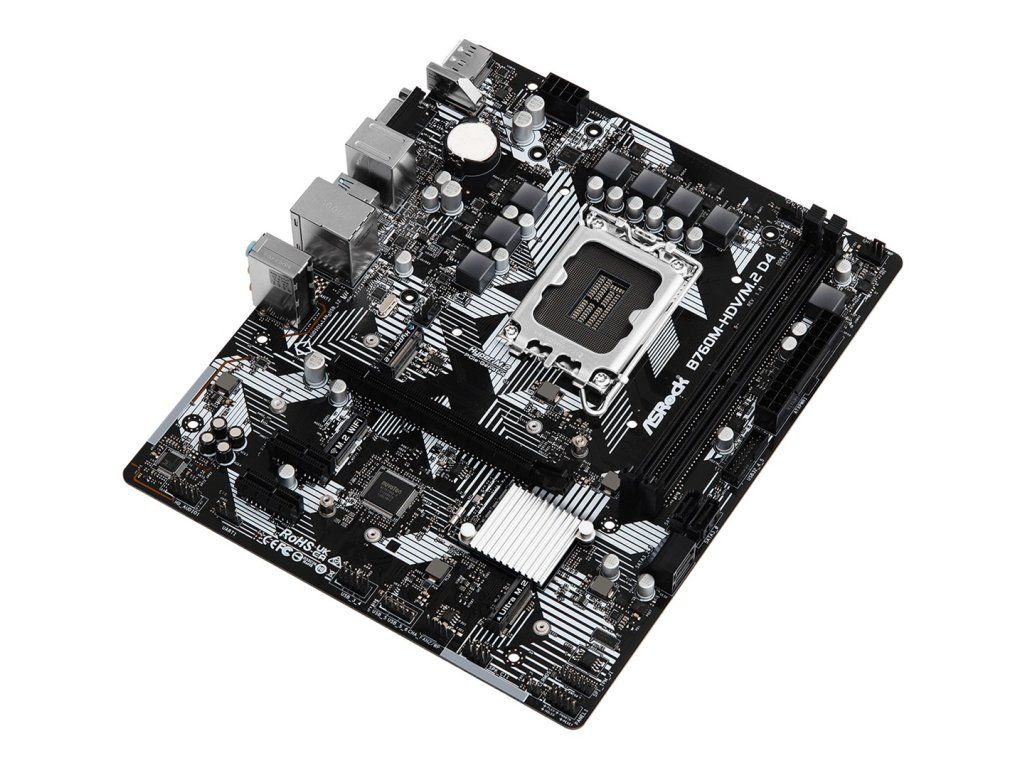

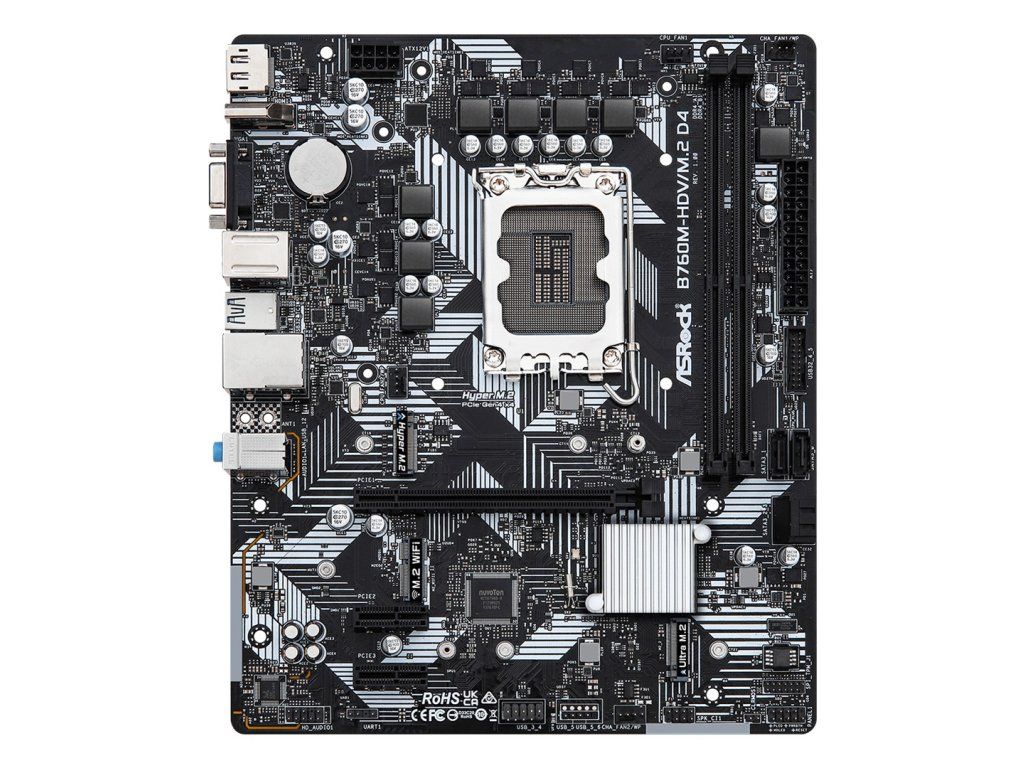

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.78 kg |
| EAN: | 4710483942020 |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i5, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Parallel processing technology support: | Not supported |
| HDCP: | Yes |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 |
| Audio chip: | Realtek ALC897 |
| Windows operating systems supported: | Windows 10 Education x64, Windows 11 x64 |
| Motherboard chipset family: | Intel |
| Certification: | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 4400, 5333 MHz, 3200 |
| Maximum internal memory: | 64 GB |
| Number of memory slots: | 2 |
| Supported memory types: | DDR4-SDRAM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Depth: | 201 mm |
| Width: | 244 mm |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| LAN controller: | Realtek RTL8111H |
| USB 2.0 connectors: | 3 |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| Front panel connector: | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| RAID levels: | 1, 10, 0, 5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of storage drives supported: | 6 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| Line-in: | Yes |
| Microphone in: | Yes |
| USB 2.0 ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| VGA (D-Sub) ports quantity: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
