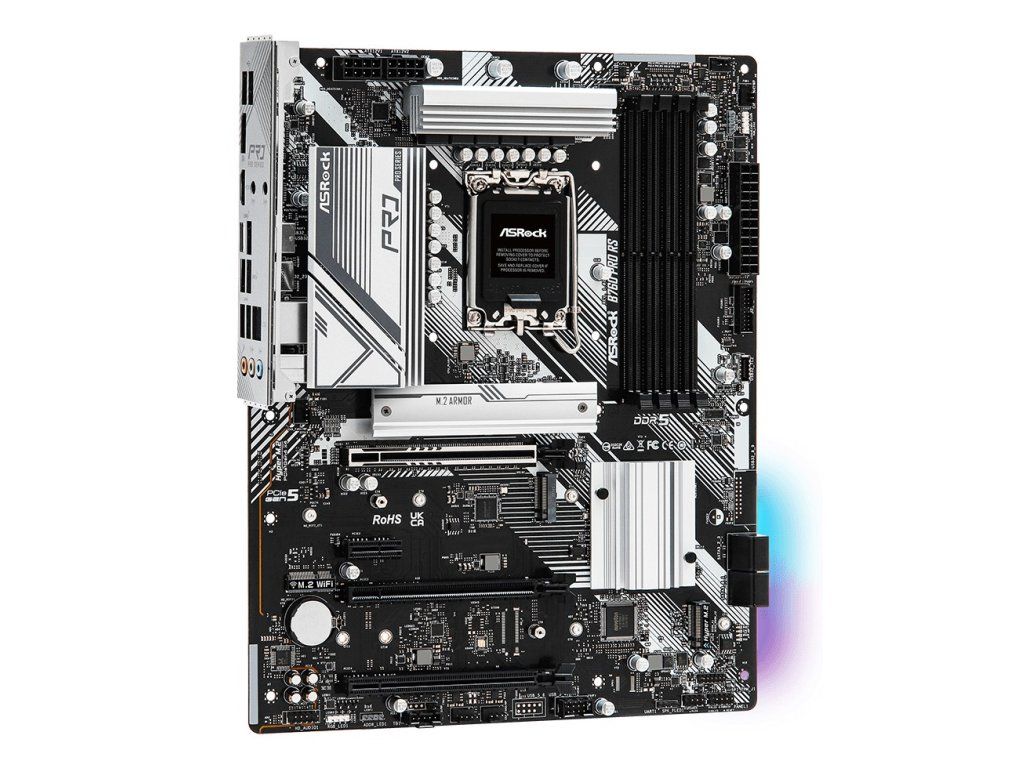

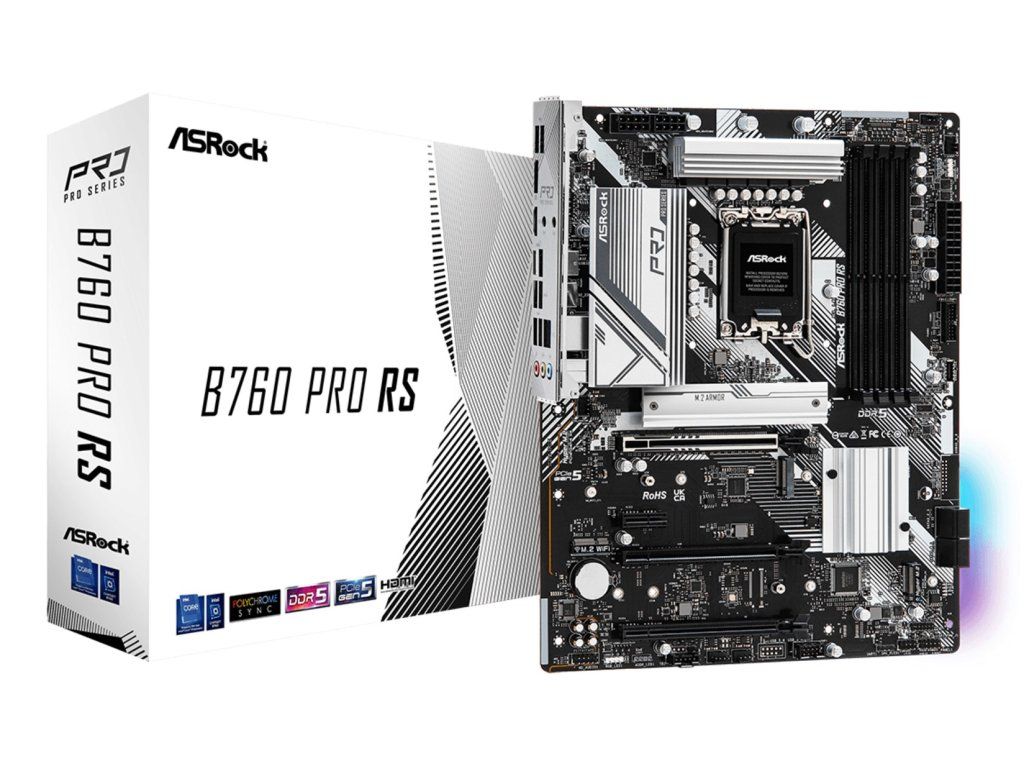

Asrock B760 PRO RS Intel B760 LGA 1700 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.6 kg |
| EAN: | 4710483942044 |
| Maximum number of SMP processors: | 1 |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5 |
| Processor manufacturer: | Intel |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| Depth: | 244 mm |
| Width: | 305 mm |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| LAN controller: | Dragon RTL8125BG |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| USB 2.0 connectors: | 1 |
| Number of SATA III connectors: | 4 |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| RGB LED pin header: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Thunderbolt headers: | 1 |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| RAID levels: | 1, 0, 10, 5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
