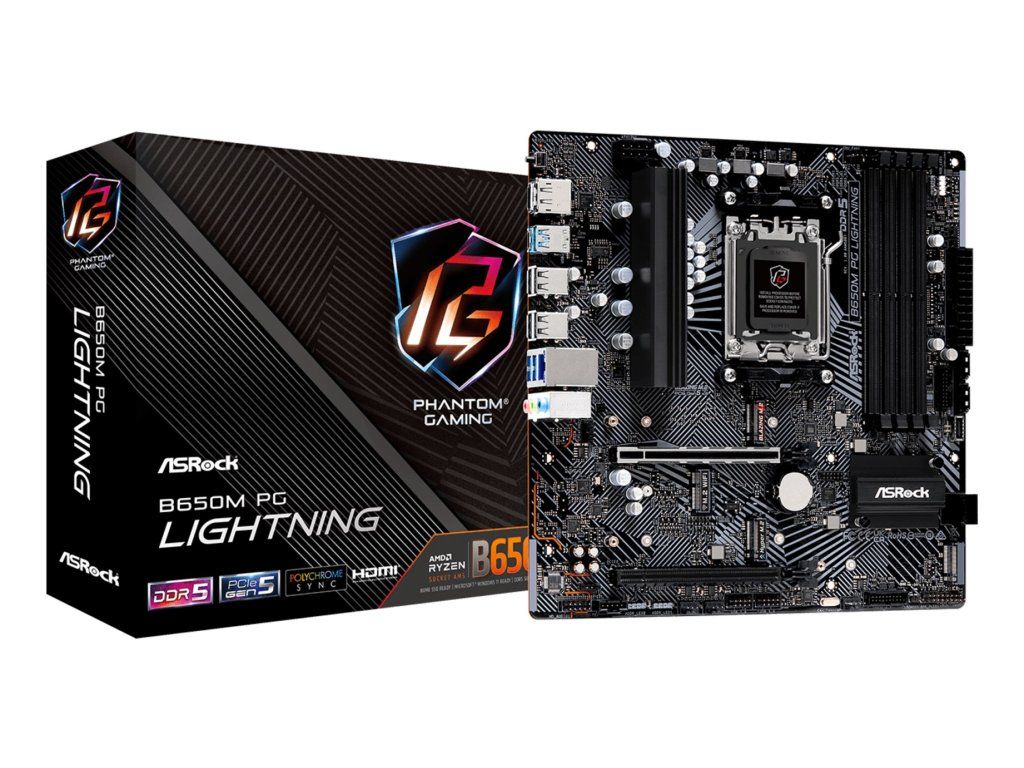

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.1 kg |
| EAN: | 4710483943829 |
| Supported processor sockets: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Maximum resolution: | 3840 x 2160 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | CrossFire |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B650 |
| Product colour: | Black |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Audio chip: | Realtek ALC897 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Certification: | FCC, CE, ErP/EuP |
| Supported memory clock speeds: | 6400, 6800, 6000, 4800 MHz, 5600, 5200, 7200, 6600, 4400 MHz, 6200, 7000 |
| Maximum internal memory: | 192 GB |
| ECC сompatibility: | ECC & Non-ECC |
| Unbuffered memory: | Yes |
| Supported memory clock speed (max): | 7200 MHz |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Depth: | 244 mm |
| Width: | 244 mm |
| LAN controller: | Dragon RTL8125BG |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Number of chassis fan connectors: | 3 |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| Number of SATA III connectors: | 4 |
| Thunderbolt headers: | 1 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 3 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| 12V power connector: | Yes |
| TPM connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Screws included: | Yes |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels: | 0, 1, 10 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Number of storage drives supported: | 7 |
| USB connector type: | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Headphone outputs: | 3 |
| HDMI version: | 2.1 |
| Microphone in: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
