Asrock B650D4U motherboard AMD B650 Express Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | AMD server motherboards |
|---|---|
| Greutate: | 1.1 kg |
| EAN: | 4711430520988 |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| On-board graphics card model: | Aspeed AST2600 |
| PC health monitoring: | Voltage, CPU, Fan |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD B650 Express |
| Component for: | Server |
| Motherboard form factor: | micro ATX |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 5200 MHz |
| Supported memory types: | DDR5-SDRAM |
| Memory voltage: | 1.1 V |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 5200, 3600 |
| Maximum internal memory: | 32 GB |
| Number of memory slots: | 4 |
| Operating relative humidity (H-H): | 20 - 90% |
| Operating temperature (T-T): | 10 - 35 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Depth: | 243.8 mm |
| Width: | 243.8 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Wi-Fi: | No |
| Top Wi-Fi standard: | Not available |
| Number of COM connectors: | 1 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| BIOS memory size: | 256 Mbit |
| System Management BIOS (SMBIOS) version: | 3.5 |
| ACPI version: | 6.4 |
| BIOS type: | UEFI AMI |
| Number of storage drives supported: | 6 |
| RAID levels: | 1, 0, 10 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |

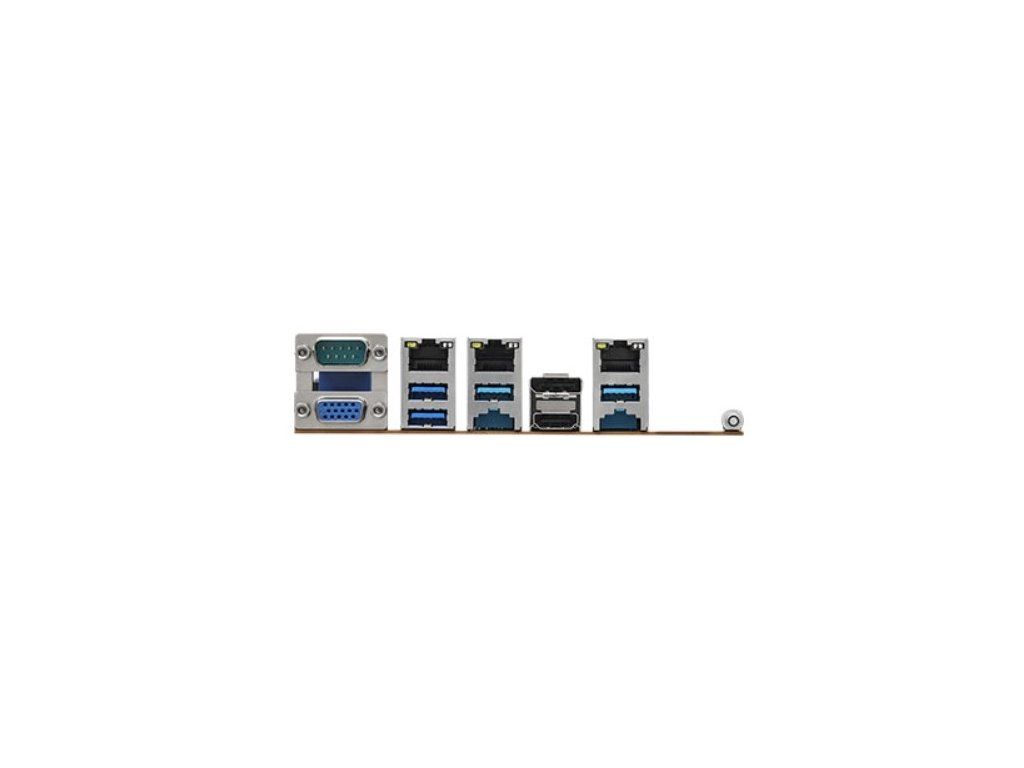

| Ethernet LAN (RJ-45) ports: | 2 |
| Serial ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| IPMI LAN (RJ-45) port: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| VGA (D-Sub) ports quantity: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| Warnings: | The motherboard may contain electronic components hazardous to health - avoid direct contact., Use only in a dry and well-ventilated area., Do not open or disassemble the motherboard. |
