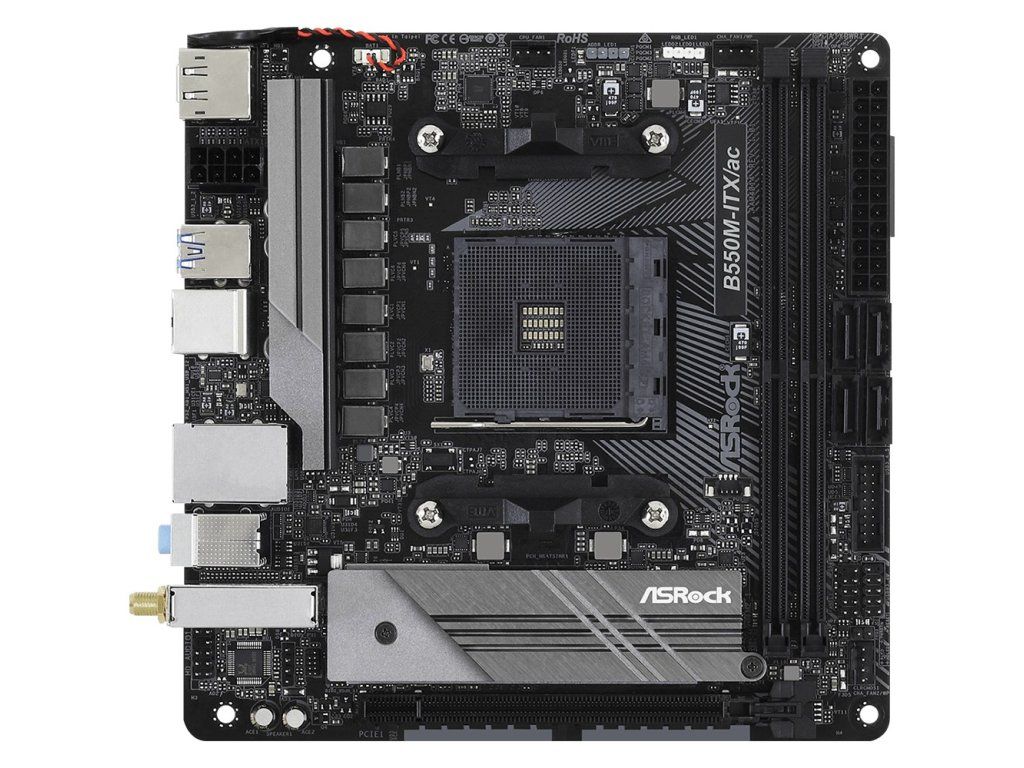

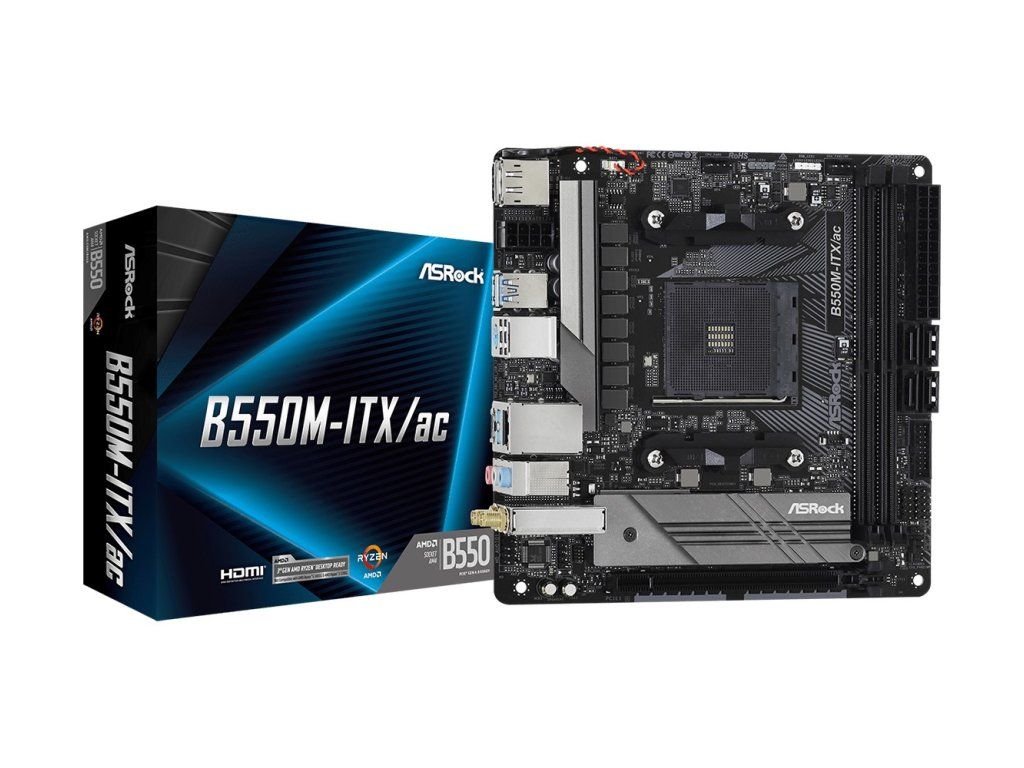

Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 0.857 kg |
| EAN: | 4710483931727 |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 9 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Graphics card: | Radeon Vega |
| HDCP: | Yes |
| On-board graphics card: | Yes |
| Graphics card family: | AMD |
| DirectX version: | 12.0 |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC887 |
| Motherboard form factor: | mini ITX |
| Audio output channels: | 7.1 channels |
| Supported memory clock speeds: | 2667, 3733, 4400 MHz, 4133, 4000, 3800, 4466, 3866, 4333, 4600, 2400, 3200, 4266 MHz, 2933, 3600, 3466, 4533 MHz, 2133 MHz, 4200 |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Number of memory slots: | 2 |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 64 GB |
| Width: | 170 mm |
| Depth: | 170 mm |
| Bluetooth: | Yes |
| Wake-on-LAN ready: | Yes |
| Ethernet LAN: | Yes |
| Bluetooth version: | 4.2 |
| Wi-Fi: | Yes |
| Wi-Fi standards: | 802.11b, 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| RGB LED pin header: | Yes |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 2.0 connectors: | 2 |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Supported storage drive interfaces: | M.2, Serial ATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
