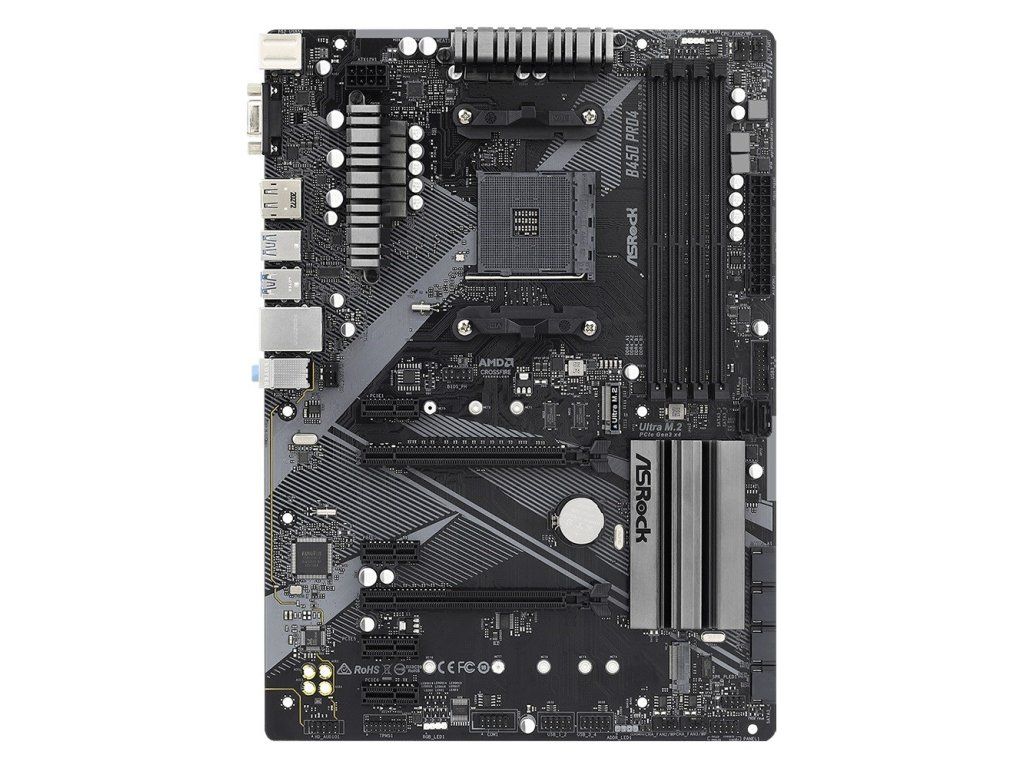

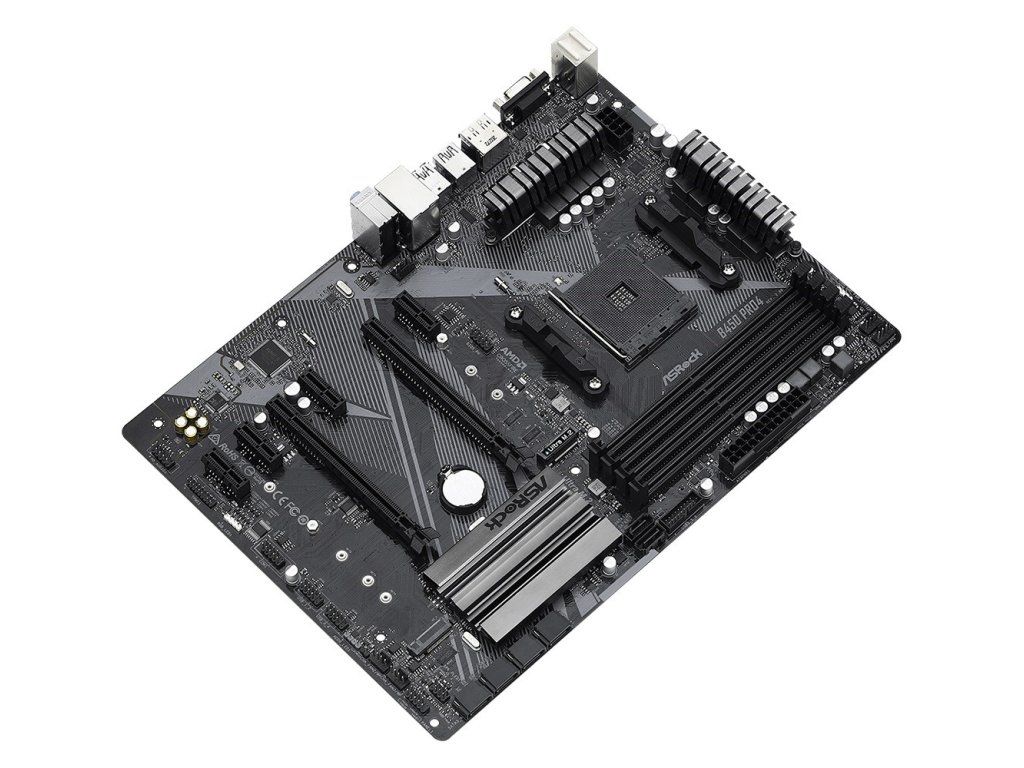

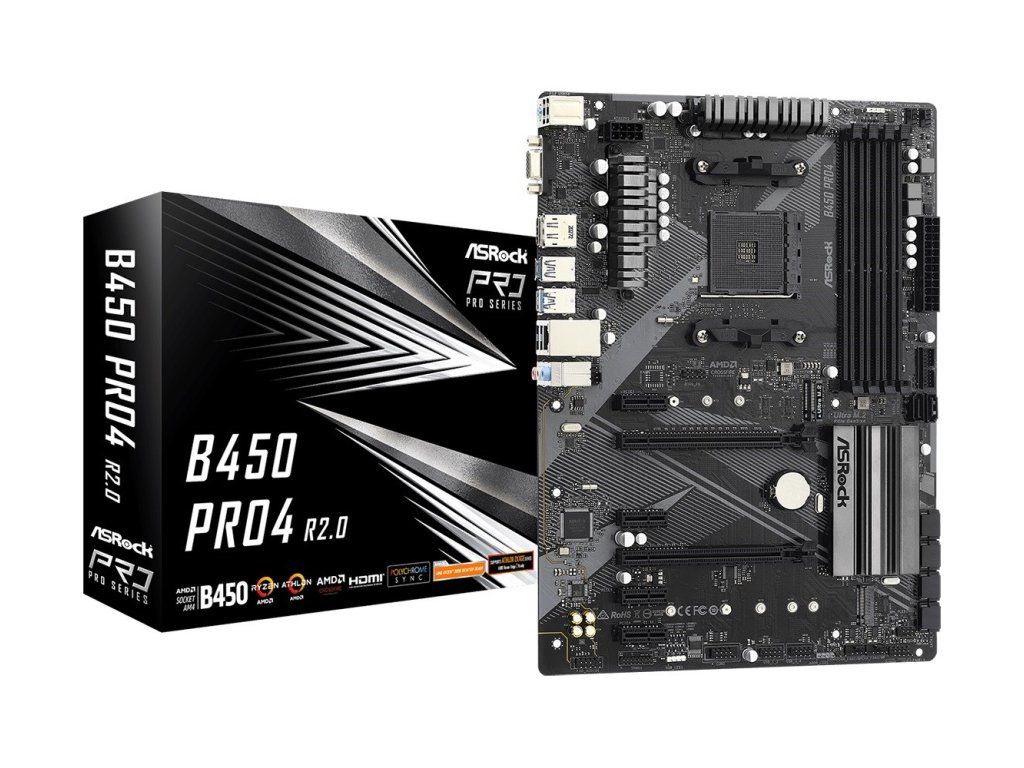

Asrock B450 Pro4 R2.0 Socket AM4 ATX AMD B450
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 1.325 kg |
| EAN: | 4710483932786 |
| Compatible processor series: | AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Athlon, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5 |
| Processor thermal power (max): | 105 W |
| Processor socket: | Socket AM4 |
| Processor manufacturer: | AMD |
| DirectX version: | 12.0 |
| Graphics card family: | AMD |
| Maximum resolution: | 4096 x 2160 pixels |
| Number of displays supported: | 3 |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD B450 |
| Audio chip: | Realtek ALC892 / Realtek ALC897 |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 channels |
| Supported memory types: | DDR4-SDRAM |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory clock speeds: | 2667, 2400, 2133, 2933 |
| Maximum internal memory: | 64 GB |
| Depth: | 224 mm |
| Width: | 305 mm |
| Ethernet LAN: | Yes |
| Wake-on-LAN ready: | Yes |
| LAN controller: | Realtek RTL8111H |
| Ethernet interface type: | Gigabit Ethernet |
| Number of SATA III connectors: | 6 |
| USB 2.0 connectors: | 2 |
| TPM connector: | Yes |
| Number of COM connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| 12V power connector: | Yes |
| Plug and Play: | Yes |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Cables included: | SATA |

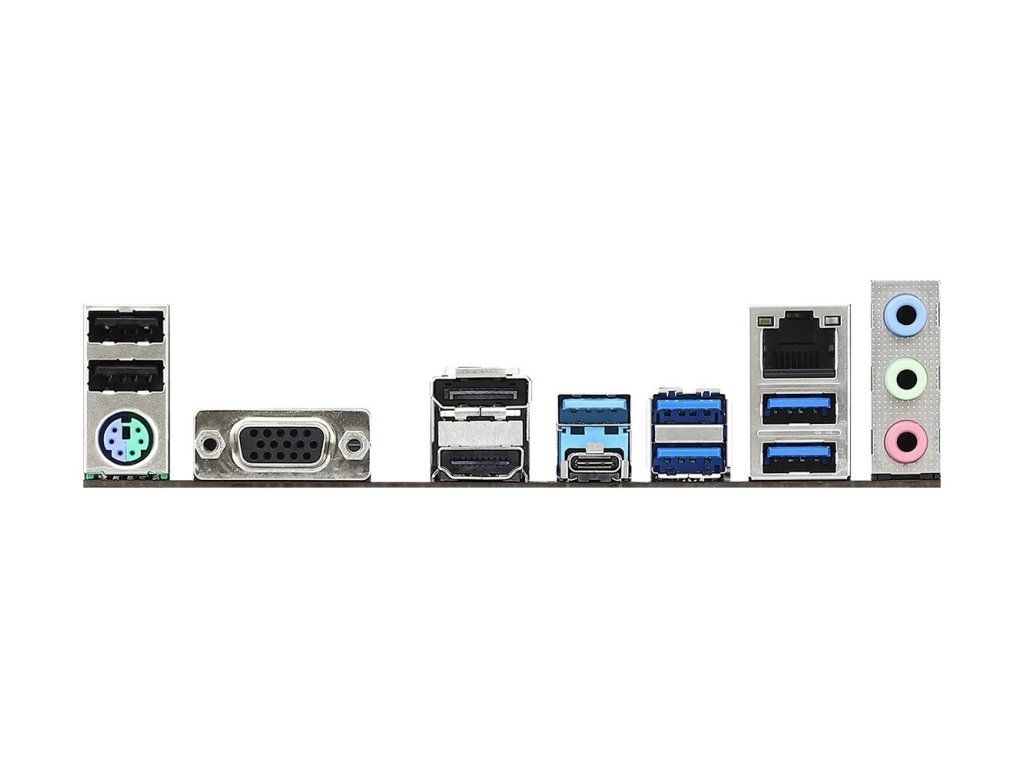

| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| VGA (D-Sub) ports quantity: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 2 |
| PCI Express x1 (Gen 2.x) slots: | 4 |
| Quick installation guide: | Yes |
