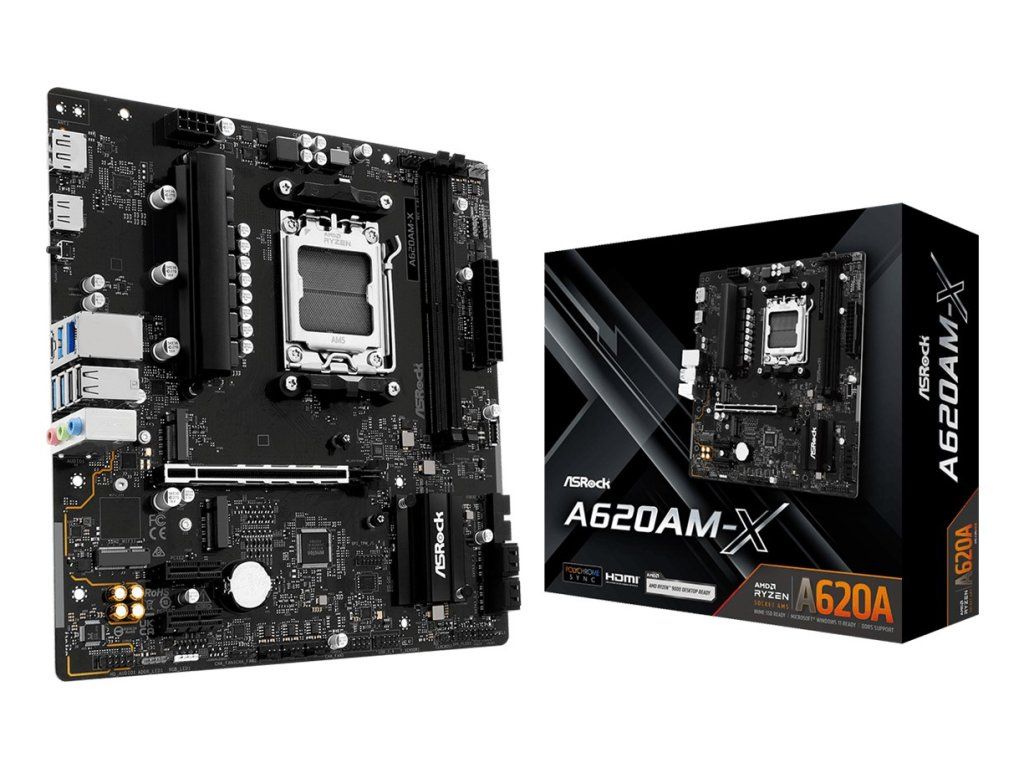

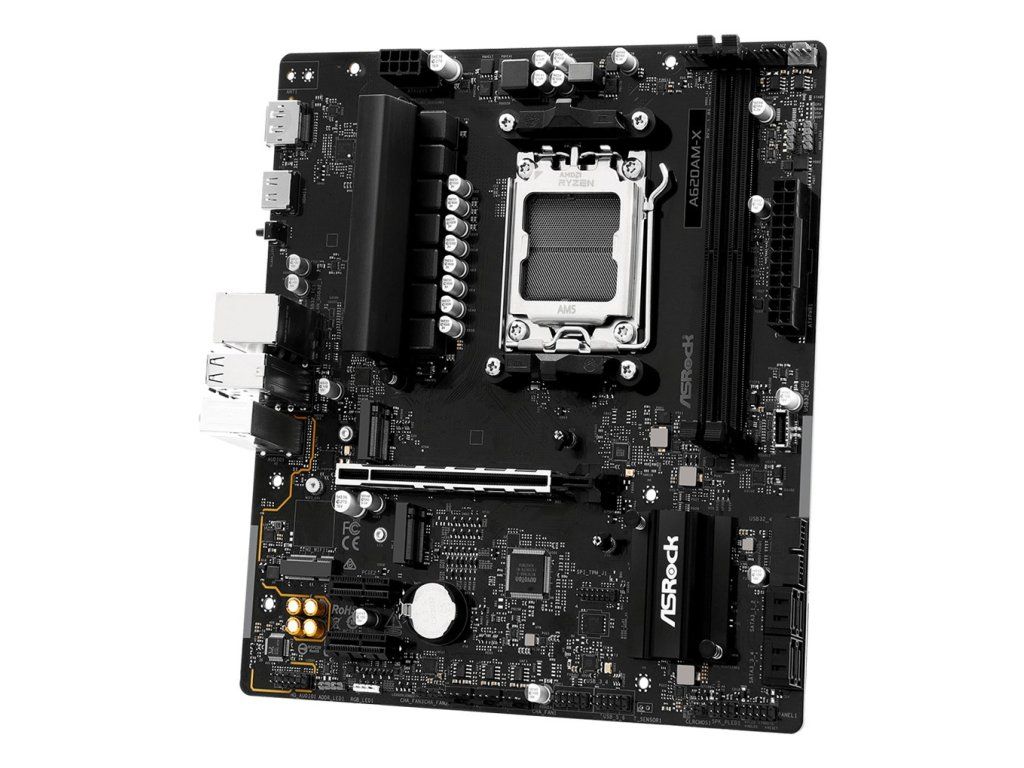

Asrock A620AM-X motherboard AMD A620 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.1 kg |
| EAN: | 4711581490819 |
| Compliance certificates: | CE, Federal Communications Commission (FCC) |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Graphics card family: | AMD |
| On-board graphics card: | Yes |
| Graphics card: | AMD RDNA 2 |
| Maximum resolution: | 3840 x 2160 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| High Dynamic Range (HDR) supported: | Yes |
| HDCP version: | 2.3 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Cooling type: | Passive |
| Motherboard form factor: | micro ATX |
| Product colour: | Black |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD A620 |
| Memory channels: | Dual-channel |
| Number of memory slots: | 2 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 8000 |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| ECC сompatibility: | ECC & Non-ECC |
| Depth: | 244 mm |
| Width: | 244 mm |
| Wi-Fi: | No |
| Ethernet interface type: | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Bluetooth: | No |
| LAN controller: | Dragon RTL8125BG |
| Number of chassis fan connectors: | 3 |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of CPU fan connectors: | 1 |
| Number of water pump connectors: | 3 |
| Number of RGB LED pin headers: | 1 |
| 12V power connector: | Yes |
| Audio connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| BIOS flashback button: | Yes |
| Cables included: | SATA |
| Manual: | Yes |
| Screws included: | Yes |
| RAID levels: | 10, 0, 1 |
| Number of HDDs supported: | 4 |
| Supported storage drive interfaces: | M.2, NVMe, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| Microphone in: | Yes |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB 2.0 ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Rear speaker out: | Yes |
| Line-in: | Yes |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Intel Extreme Memory Profile (XMP): | Yes |
| AMD Extended Profiles for Overclocking (EXPO): | Yes |
