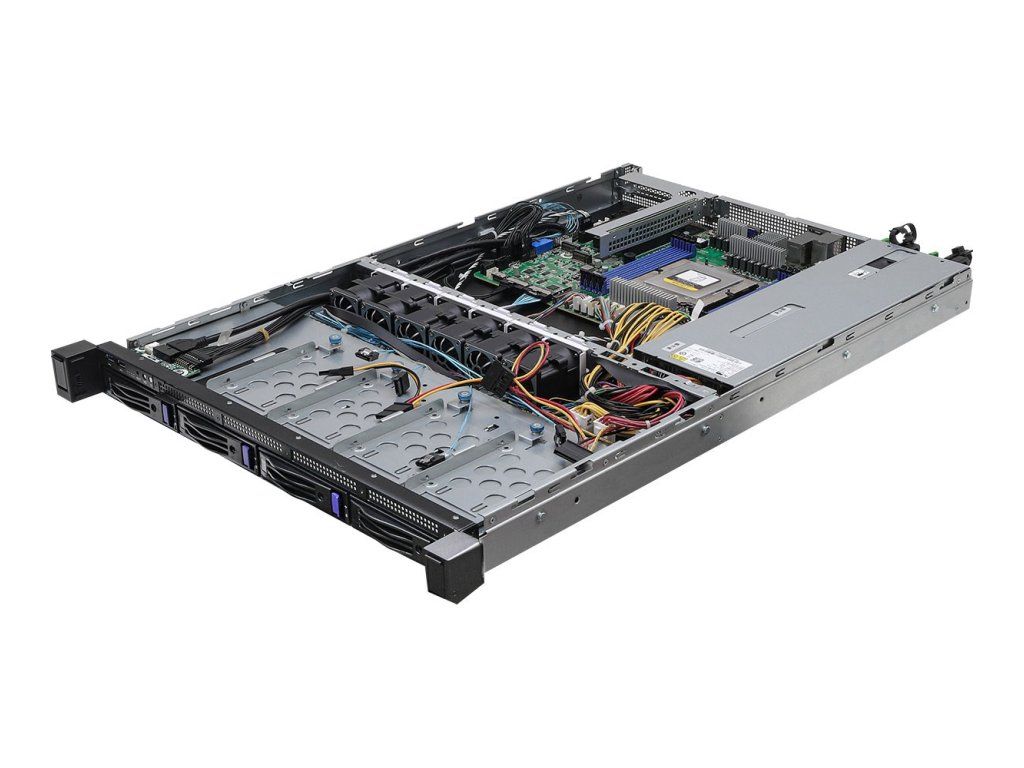

Asrock 1U4L-GENOA/2T server barebone AMD SoC LGA 6096 Rack (1U) Grey
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Server platforms RACK |
|---|---|
| Greutate: | 22.9 kg |
| EAN: | 4710483942518 |
| Processor socket: | LGA 6096 |
| Compatible processor series: | AMD EPYC 9004, AMD EPYC 9005 |
| Motherboard chipset: | AMD SoC |
| Number of processors supported: | 1 |
| On-board graphics card model: | Aspeed AST2600 |
| PC health monitoring: | Temperature, Fan, Voltage |
| Supported RDIMM clock speeds: | 4800 MHz |
| Number of DIMM slots: | 8 |
| Supported memory types: | DDR5 RDIMM/3DS RDIMM |
| Memory form factor: | 288-pin DIMM |
| Cooling type: | Active |
| Product colour: | Black, Grey |
| Reset button: | Yes |
| LED indicators: | System |
| Chassis type: | Rack (1U) |
| Number of fans: | 6 fan(s) |
| On/off switch: | Yes |
| 80 PLUS certification: | 80 PLUS Platinum |
| Power supply: | 750 W |
| Number of main power supplies: | 2 |
| Storage relative humidity (H-H): | 20 - 90% |
| Operating temperature (T-T): | 10 - 35 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Height: | 43.4 mm |
| Depth: | 438 mm |
| Width: | 676.5 mm |
| LAN controller: | Intel® X550-AT2 |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 10 Gigabit Ethernet |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 6.4 |
| BIOS type: | UEFI AMI |
| Plug and Play: | Yes |
| System Management BIOS (SMBIOS) version: | 3.5 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Supported storage drive types: | HDD & SSD |
| Number of 2.5" bays: | 4 |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of 3.5" bays: | 4 |
| Number of M.2 (M) slots: | 2 |
| Number of storage drives supported: | 10 |
| IPMI LAN (RJ-45) port: | Yes |
| Ethernet LAN (RJ-45) ports: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Warnings: | Do not throw into regular trash, product requires special disposal., Do not disassemble the unit yourself., The product may contain components that are harmful to health, use caution when handling. |
