Akyga AK-B1-600 power supply unit 600 W 20+4 pin ATX ATX Grey
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 1.26 kg |
| EAN: | 5901720130358 |
| Sustainability certificates: | RoHS |
| Product colour: | Grey |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |

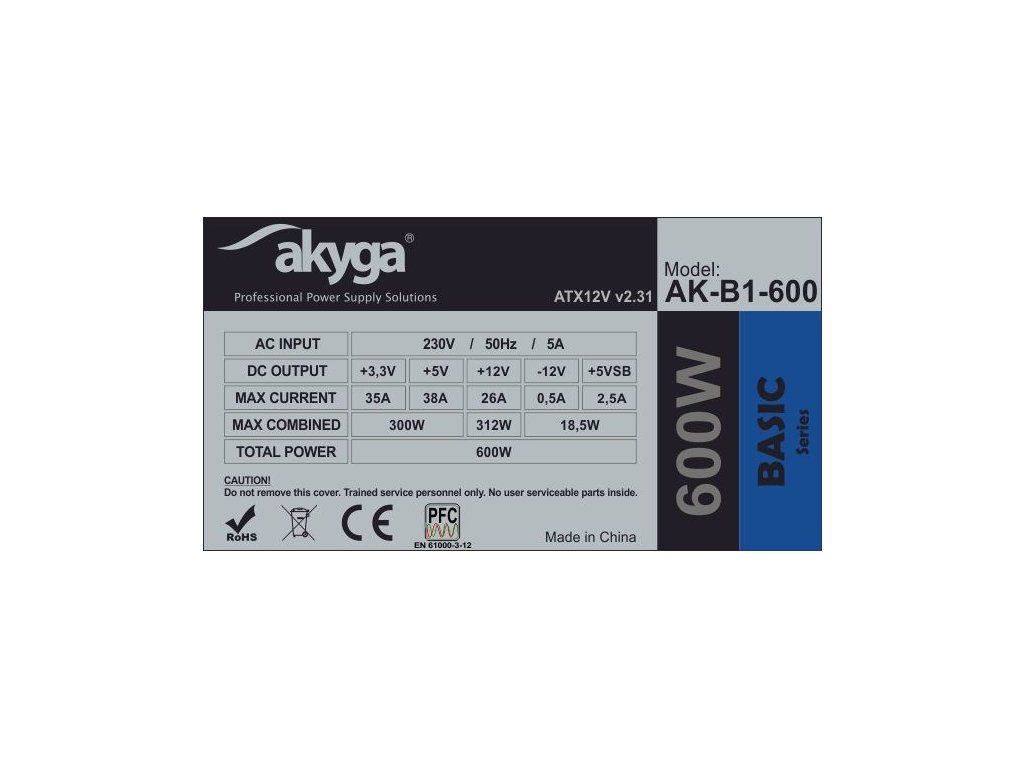

| AC input voltage: | 230 V |
| Max output current (+5V): | 38 A |
| Efficiency: | 70% |
| Power protection features: | Short circuit, Over voltage, Over power, Under voltage, Over current |
| Total power: | 600 W |
| Combined power (+3.3V): | 300 W |
| Input current: | 5 A |
| Power Factor Correction (PFC) type: | Passive |
| Max output current (+5Vsb): | 2.5 A |
| Max output current (-12V): | 0.5 A |
| Combined power (+5Vsb): | 18.5 W |
| Combined power (+12V): | 312 W |
| Max output current (+3.3V): | 35 A |
| AC input frequency: | 50 Hz |
| Combined power (+5V): | 300 W |
| Operating temperature (T-T): | 5 - 50 °C |
| Depth: | 140 mm |
| Height: | 87 mm |
| Weight: | 1.12 kg |
| Width: | 150 mm |
| Mean time between failures (MTBF): | 100000 h |
| Power supply unit (PSU) form factor: | ATX |
| Purpose: | PC |
| ATX version: | 2.31 |
| Certification: | REACH, CE, RoHS |
| Package type: | Box |
| Package depth: | 220 mm |
| Package weight: | 1.19 kg |
| Package height: | 95 mm |
| Package width: | 160 mm |

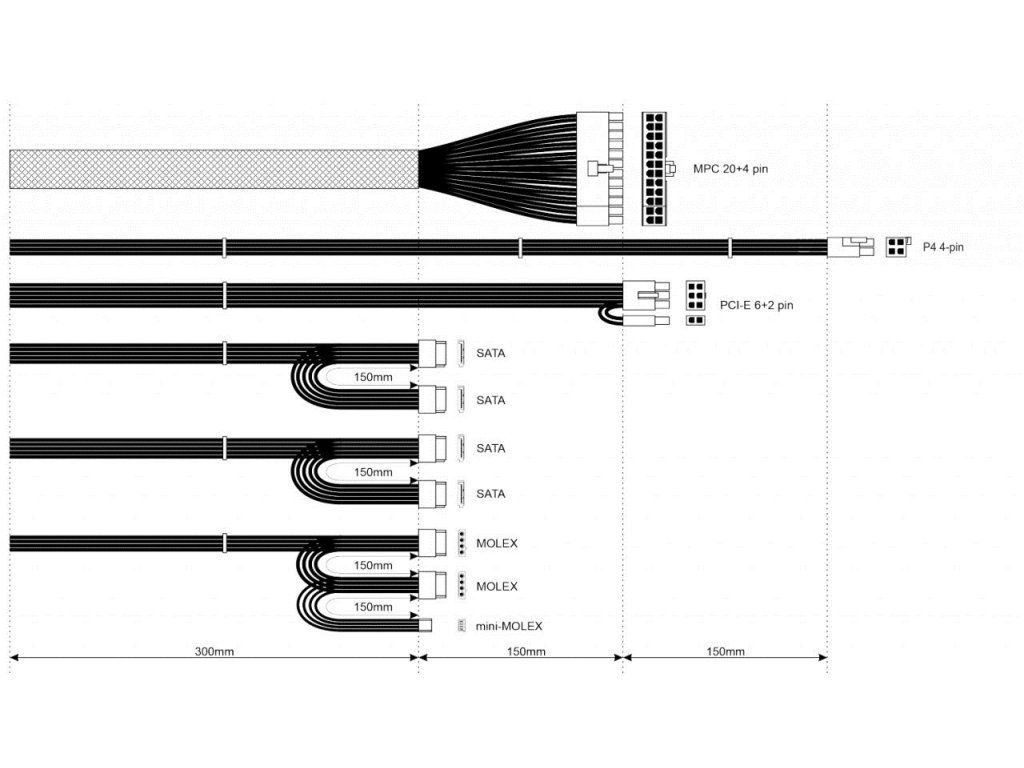

| Peripheral (Molex) power connectors (4-pin): | 2 |
| PCI Express power connectors (6+2 pin): | 1 |
| EPS power connector (8-pin): | No |
| Number of SATA power connectors: | 4 |
| Motherboard power connector: | 20+4 pin ATX |
