Akyga AK-B1-500E power supply unit 500 W 20+4 pin ATX ATX Grey
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 1.01 kg |
| EAN: | 5901720133236 |
| Sustainability certificates: | RoHS |
| Product colour: | Grey |
| On/off switch: | Yes |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |

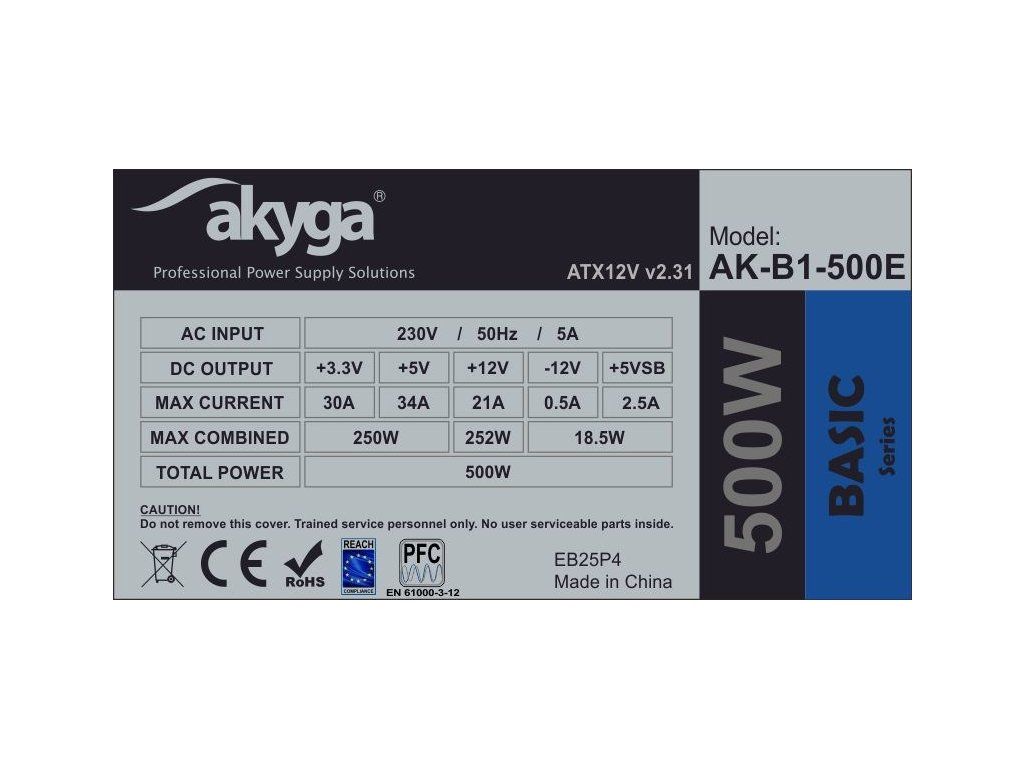

| Combined power (+5V): | 250 W |
| Input current: | 5 A |
| AC input voltage: | 220 V |
| Max output current (+3.3V): | 30 A |
| Combined power (+12V): | 252 W |
| Max output current (+5V): | 34 A |
| Combined power (+3.3V): | 250 W |
| Power Factor Correction (PFC) type: | Passive |
| Max output current (+12V): | 21 A |
| Total power: | 500 W |
| Operating temperature (T-T): | 5 - 50 °C |
| Depth: | 140 mm |
| Width: | 150 mm |
| Weight: | 1.01 kg |
| Height: | 85 mm |
| Power supply unit (PSU) form factor: | ATX |
| Mean time between failures (MTBF): | 100000 h |
| Purpose: | PC |
| Supported motherboard form factors: | ATX |
| ATX version: | 2.31 |
| Certification: | CE, RoHS, REACH |
| Package depth: | 220 mm |
| Package type: | Box |
| Package weight: | 1.09 kg |
| Manual: | Yes |
| Package height: | 95 mm |
| Package width: | 160 mm |

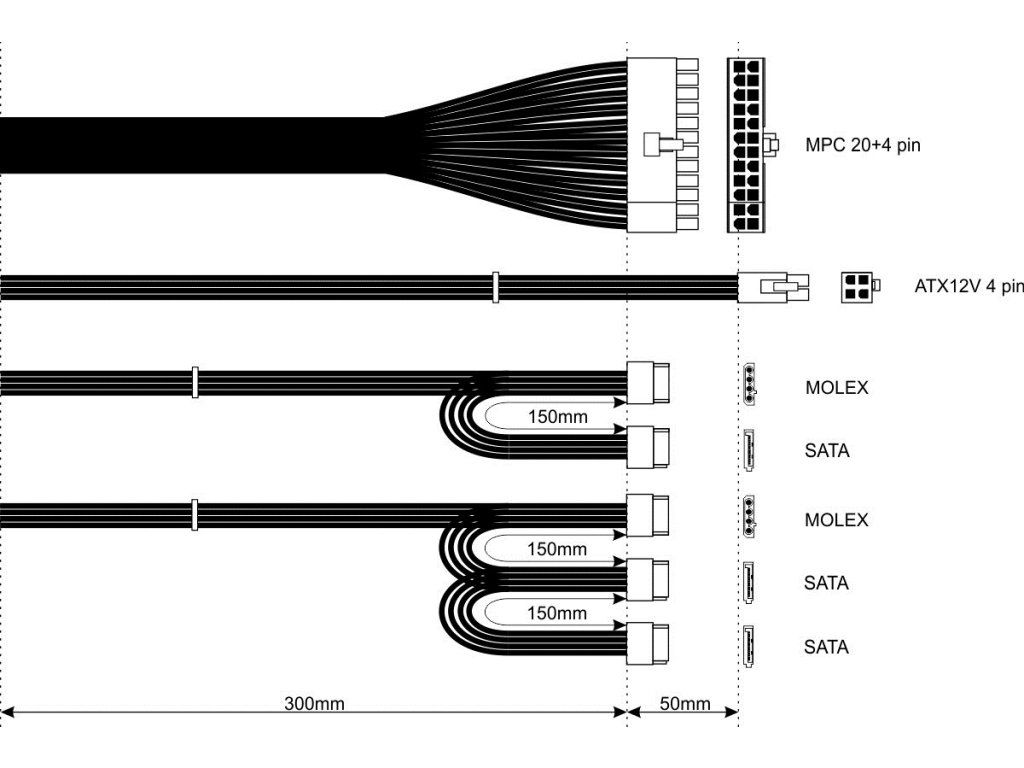

| Cables included: | Peripheral (Molex) to SATA 3.3, SATA |
| Number of SATA power connectors: | 3 |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| SATA power cable length: | 300 |
| EPS power connector (8-pin): | No |
| Peripheral (Molex) power cable length: | 300 mm |
| Motherboard power connector: | 20+4 pin ATX |
| ATX power connector (12+4 pin): | Yes |
| Fan controller: | Yes |
| Warranty card: | Yes |
| Voltage tolerance: | 70% |
| Number of cables: | 4 |
| Warnings: | Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations. |
