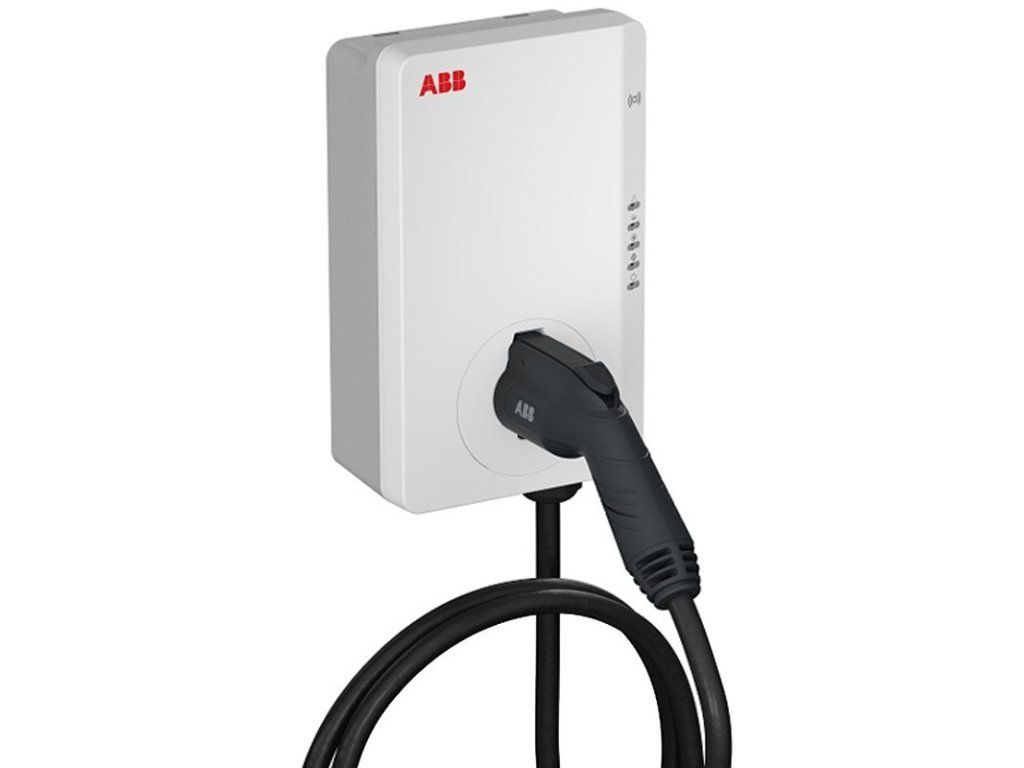

ABB Terra AC W11-G5-R-V2-0 charging station: Terra AC wallbox 11 kW, Type 2, 5 m cable, 3-phase/16 A, with RFID, version 2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | DC charging stations |
|---|---|
| Greutate: | 5.6 kg |
| EAN: | 8719874454056 |
| Output power: | 11 kW |
| Mounting type: | Wall |
| Charging current: | 20 A |
| Socket type: | Type 2 |
| Charging cable length: | 5 m |
| Handle(s): | Yes |
| Number of phases: | 3 |
| Charging voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Suitable for: | Outdoor |
| AC input frequency: | 50–60 |
| AC input voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Bluetooth: | Yes |
| Wi-Fi: | Yes |
| Output current: | 32 A |
| International Protection (IP) code: | IP65 |
| Cable entry location: | Rear, Bottom |
| Fault diagnose system: | Yes |
| Depth: | 320 mm |
| Weight: | 4.3 kg |
| Height: | 110 mm |
| Width: | 195 mm |
| Hazard pictogram(s): | GHS05: Corrosive, GHS04: Compressed gas |
| Warnings: | Disconnect the unit from the power supply during maintenance or servicing., Do not use the unit in a damp or wet environment to avoid the risk of electric shock., Before use, make sure the device is correctly installed by a qualified electrician. |
